Xorcom CTS3000 IP-PBX Failover System

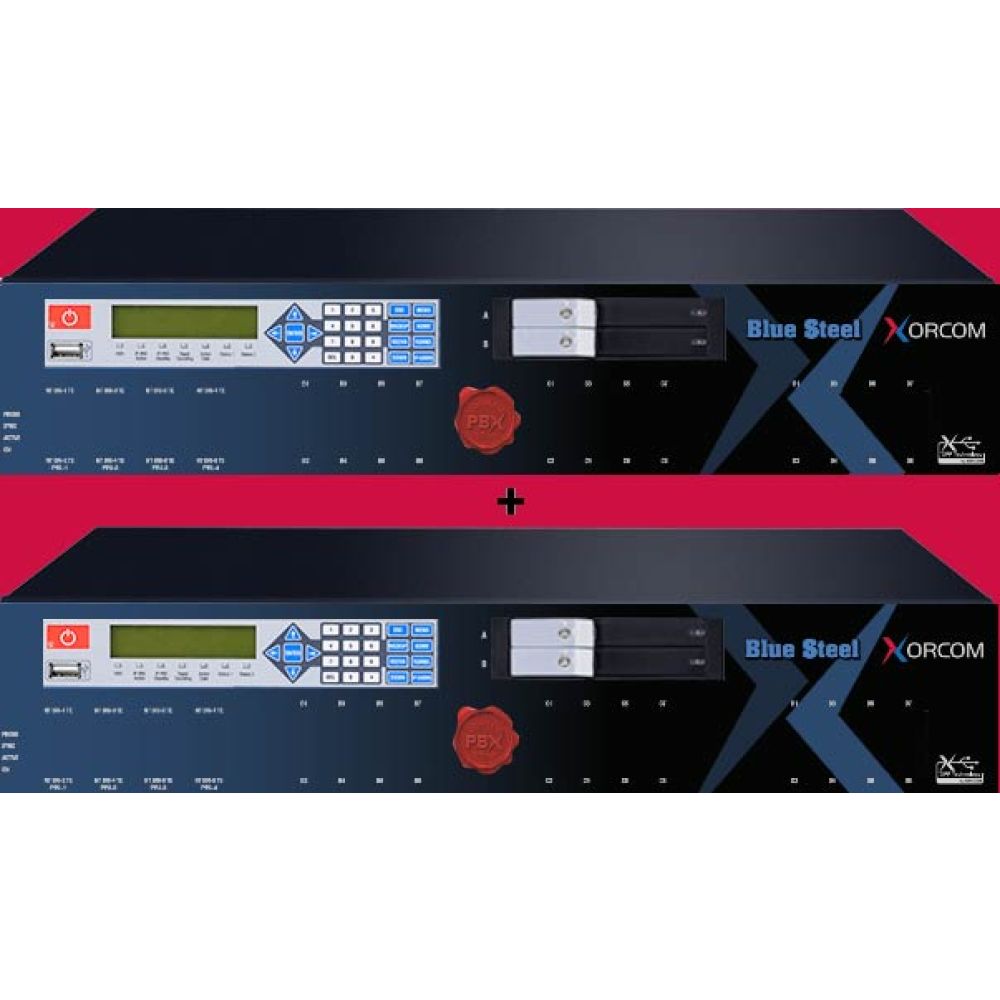

TwinStar Plus 3000 Failover PBX- Comprised of two CXE3000s in TwinStar Plus mode

The TwinStar Plus CTS3000 is comprised of two CXE3000 module-less VoIP servers. CTS3000 is a stand-alone, pre-configured, out-of-the-box IP-PBX failover solution featuring Xorcom’s CompletePBX distribution in a two 19″ 2U chassis. Digital PRI and BRI ISDN and PSTN/analog phone ports can be supported by connecting external Astribank units via the USB2 ports, for a total of up to 672 PSTN/analog phones ports, up to 1000 users and up to 550 concurrent calls (SIP only); 480 for PRI / FXS.

TwinStar Plus 3000 Failover PBX Overview

The robust CTS3000 comes standard with a RAID1 Support, redundant fans for cooling, internal backup and restore, front panel USB access, and two Ethernet ports to allow separation of IP voice and data traffic for improved voice quality and increased throughput.

A multi-function LCD (Liquid Crystal Display) on the CTS3000 allows the system administrator to perform several of the most common functions directly on the front panel of the IP-PBX without having to attach a keyboard and monitor. The touch panel uses a text-based menu tree to facilitate monitoring, maintenance, and troubleshooting of the entire telephony system.

Also available with the CTS3000 is the Rapid Recovery – Backup Utility, provided on Disk-on-Key. CTS3000 configurations with an FXS module support Rapid PA – Public Address to provide public address functionality to Asterisk installations, and are also offered with I/O ports to support a wide array of peripheral devices.

TwinStar Plus 3000 Failover PBX Features and Specifications:

• Up to 1000 users
• Various combinations of FXS, FXO, BRI ISDN and PRI/CAS/R2 ports
• Supports SIP and IAX2 phones and trunks
• Up to 8 BRI ISDN ports
• Up to 4 PRI (E1/T1), T1 CAS, or R2 (E1) ports
• Up to 20 external Astribank USB channel banks
• Concurrent calls: Up to 325 (SIP only); 300 (PRI + FXS)
• Supports auxiliary appliances (door locks, alarm systems etc.)
• Easy-to-use Web interface for Asterisk and network setup

Hardware:

• Processor: Intel i3 2120 (3.3GHz, 2 Cores, 3MB cache)
• RAM: 4 GB
• Hard disk: From 320GB 2.5” (upgradeable to 1TB HDD, or SSD)
• RAID1: Dual hard drive for increased system reliability
• Fan: 3 redundant fans
• Echo Cancellation Module: Voice enhancement & echo cancellation (optional)
• Analog Lines Fail-over Kit: In case of power outage or an Asterisk malfunction, up to six analog PSTN lines are routed directly to predetermined analog extensions (optional and model-specific)
• USB: 2 external USB 2.0
• I/O Ports: Input/Output ports for Asterisk peripheral device support (optional)

Software:

• Software: CompletePBX v. 5 free upgrades under warranty
