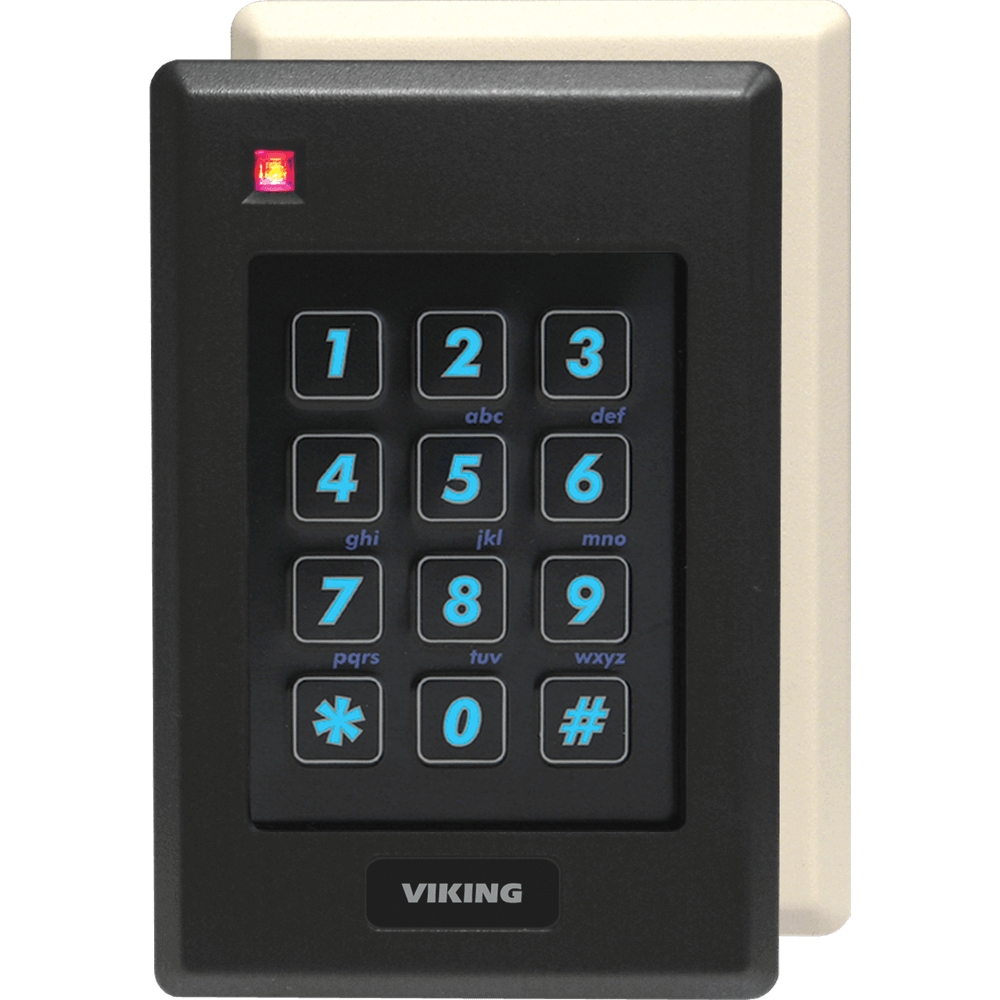

Viking Proximity Reader with Built-In Keypad PRX-2

The Viking PRX-2 combines a 125KHz proximity reader and a capacitive keypad into a single unit, designed for mounting on standard single-gang wall boxes. It transmits data in 26-Bit Wiegand format, ensuring compatibility with Viking's Wiegand-equipped entry controllers, and features a non-mechanical keypad with blue LED backlighting, raised keys, and a tactile pip on the 5-key for ease of use. The device supports non-contact read ranges up to 6 inches, operates on 5 to 14 VDC, and includes horizontal and vertical mounting slots for easy installation, along with Black and Ash covers to conceal hardware. Equipped with Enhanced Weather Protection (EWP), the PRX-2 is ideal for outdoor use, enduring exposure to precipitation and condensation.

Viking Proximity Reader with Built-In Keypad PRX-2 Features & Specifications:

• Read range of up to 6 inches using proximity cards, 3 inches with PRX-FOB
• Reader Format: 26-bit Wiegand
• Keypad formats: 8-bit burst (default) and 26-bit Wiegand
• Technologies supported: Viking PRX-C, PRX-C-ISO, PRX-FOB, LRT-4 certain legacy HID® proximity protocols* and certain AWID 125Khz proximity protocols**
• Designed for outdoor use, the PRX-2 comes standard with Enhanced Weather Protection (EWP) (DOD# 859)
• PRX-2 is designed to meet IP66 Ingress Protection Rating (see DOD# 859)
• Mounts to a standard single gang electrical box
• Pigtail connection for easy installation
• Red LED shows activity
• Beep tones acknowledge key strokes
• Programmable Facility Code stored in non-volatile memory (no batteries required)
• Can be mounted directly to a metal surface
• CE marked
