Viking Networked Clock-Controlled Tone/Message Generator & Master Clock CTG-2A

$1,125.00

Log in for lower price

Availability: In stock
SKU
02-134259
MPN
CTG-2A
MSRP
$1,250.00

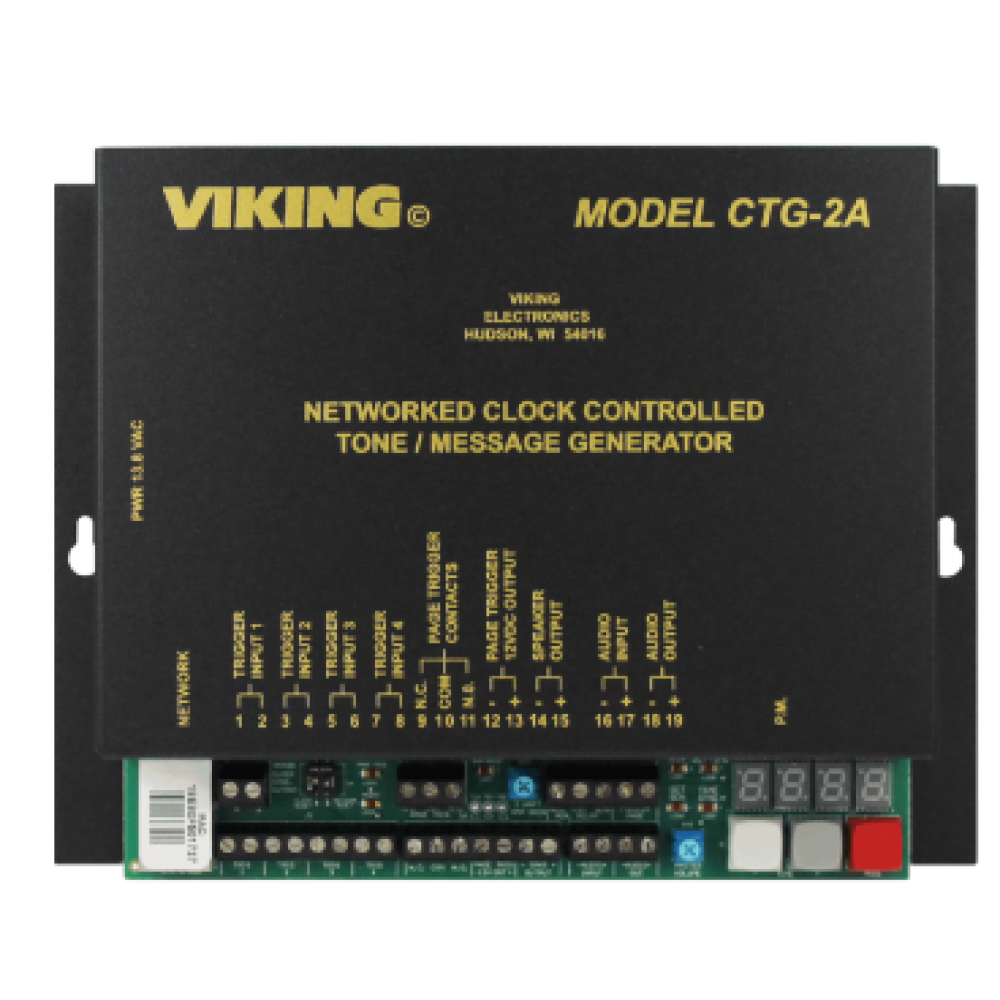

Viking’s model CTG-2A is a networked clock controlled tone/message generator designed to provide accurately timed tones and/or messages over your existing paging system. This provides a cost effective way of signaling school period changes, factory shifts, breaks, lunch periods, etc.

Viking Networked Clock-Controlled Tone/Message Generator & Master Clock CTG-2A

The CTG-2A has four programmable trigger inputs which are ideal for triggering emergency alert tones/messages to indicate fire evacuation, severe weather, lockdown, all clear or can be used in-store caster applications for “customer service required” announcements, etc. The CTG-2A can also be used as a master clock to synchronize Viking CL Series wireless clocks.

The CTG-2A comes equipped with up to 6 minutes of CD-quality WAV file audio storage for up to 14 different tone/messages. The unit is factory-loaded with common school, business, and factory tones but can be programmed with your custom tones/messages or updated from the list of WAV files from the Viking website.

Viking Networked Clock-Controlled Tone/Message Generator & Master Clock CTG-2A Features & Specifications:

  • Up to 14 schedules and up to 1,000 events
  • 6 minutes of CD quality WAV file record time
  • Up to 14 different tones or messages
  • 4 programmable trigger inputs for emergency tones, etc.
  • Automatic Daylight Saving Time and leap year correction
  • Programmable NTP Clock synchronization
  • PC programming software included
  • RS485 clock SYNC terminals for remote Master Clock control of Viking CL Series RF synchronized clocks
  • Non-volatile memory with 4-day clock backup
  • Factory loaded with school/factory tones and evacuation signals (ANSI S3.41), etc.
  • Remote program via TCP / IP network
  • Page trigger outputs (12VDC and DPDT relay)
  • Programmable auxiliary relay contacts (DPDT)
  • 24-hour digital clock displays hours and minutes
  • One mono line level pre-amp input and audio output
  • Built-in 1 Watt mono audio amplifier
  • One isolated audio output for PABX / dial access paging
  • Master volume control
  • Programmable volume control per tone/message
  • Time base selection: Network, 50 / 60Hz or internal
  • Programmable message repeat count for trigger inputs
More Information
SKU 02-134259
Shop By Brand Viking
Model CTG-2A
MPN CTG-2A
MSRP $1,250.00
