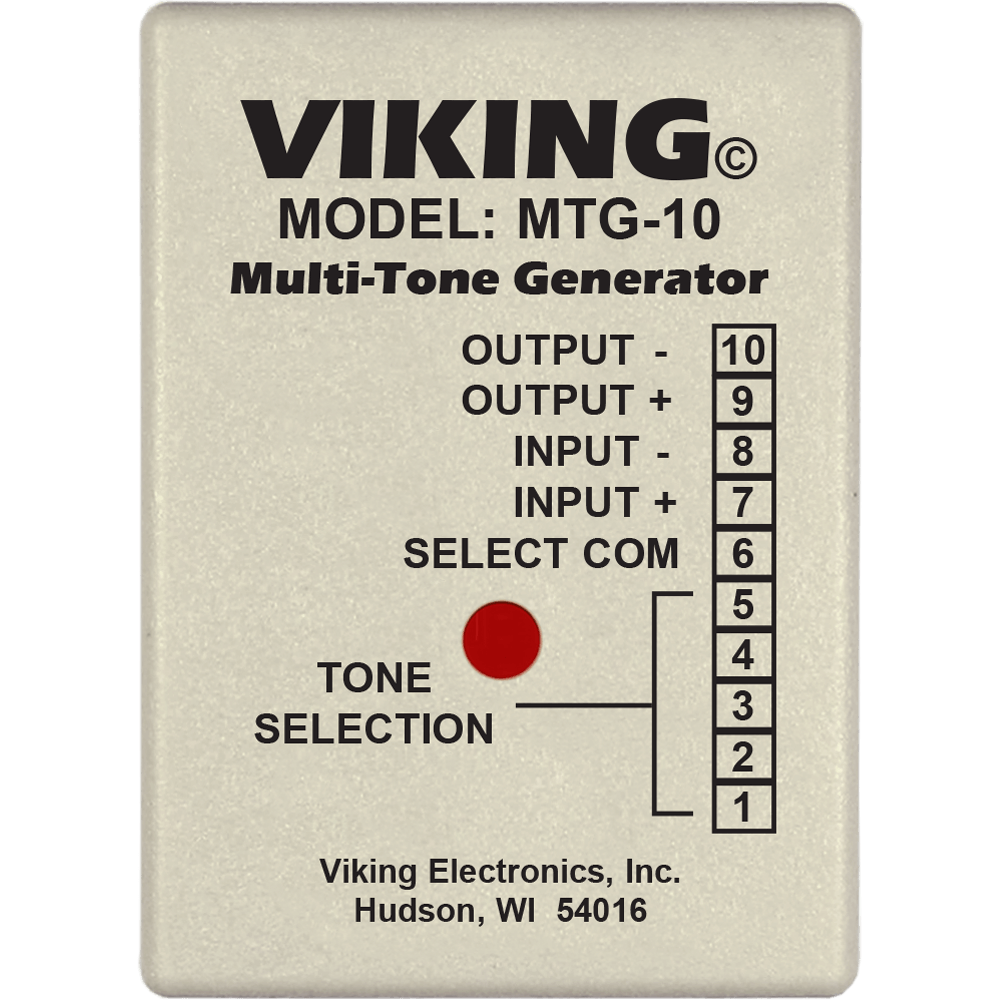

Viking Multi-Tone Generator MTG-10

The model MTG-10 is a multi-tone generator designed to add multiple contact-controlled audio tones to paging systems or 600 Ohm inputs.

The MTG-10’s audio input can be connected to any paging source, ie: phone system paging port or background music. When a contact closure is provided to one of the inputs, the paging or background music is faded out and the appropriate tone is generated over the paging system. The siren or the evacuation whoop always have priority and over-ride any other tone being generated.

The MTG-10 can also be configured to provide a tone every 15 seconds to notify callers that their conversation is being recorded.

Viking Multi-Tone Generator MTG-10 Features & Specifications:

Tone Descriptions:

• Siren
• Interrupted 784Hz Tone
• Door Chime (Ding-Dong)
• Warble (Electronic Ring)
• Fast Whoop
• Hi-Low Siren
• March Time Horn
• All Clear
• Double Gong
• Evacuation Whoop (ANSI/NFPA compliant, temporal slow whoop)
• Telephone Recording Disclosure Tone (250ms beep, every 15 seconds)
• Double Chime
• Quadruple Chime
• Double Buzz or Steady Buzz
