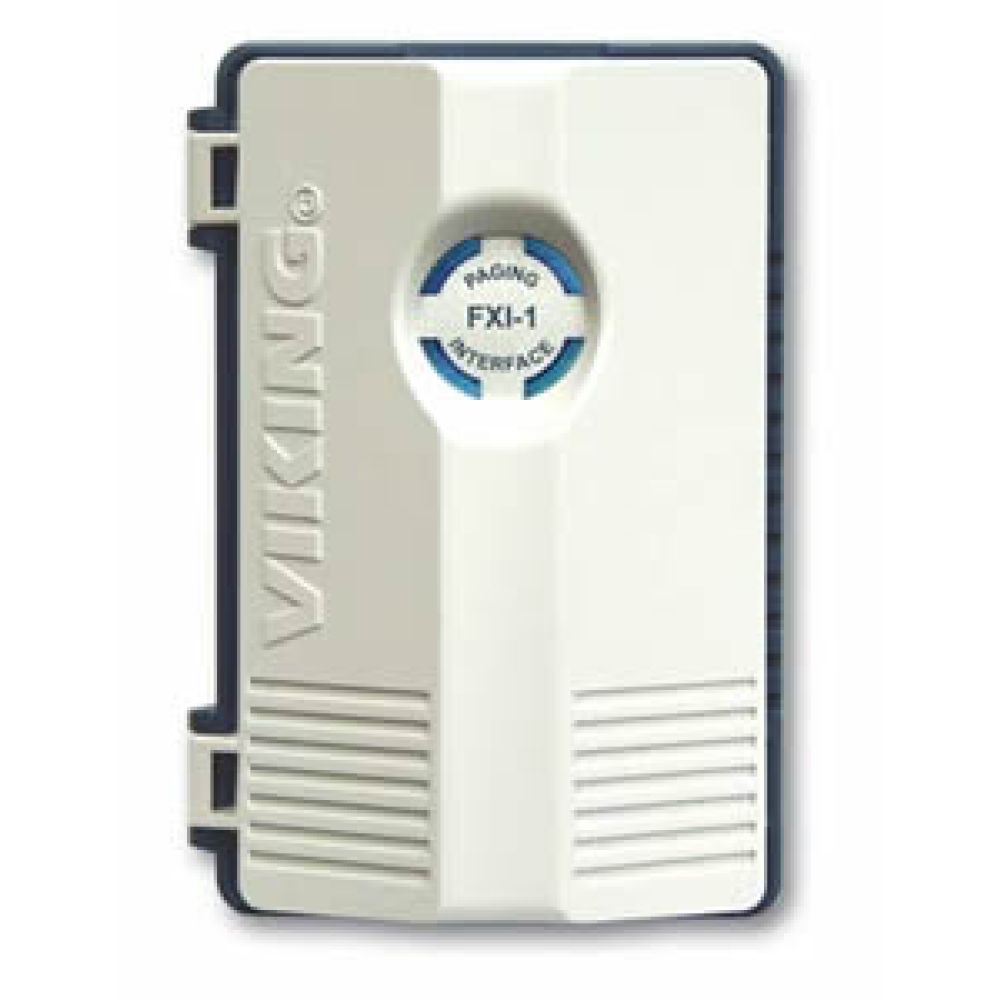

Viking FXO/FXS Smart Paging Interface Adapter FXI-1A

The FXI-1 provides 26V talk battery for interfacing with an FXO or unused analog line input/trunk port. With the flip of a switch, the unit can connect to a FXS or PABX station ring trip port. No power supply is required in this mode. In the event that it must be connected to a “dry” 600 ohm paging port, the built-in voice activation (VOX) is in control. This configuration is useful when interfacing with systems that do not provide a paging contact closure, such as Panasonic,
South Western Bell, Intertel, etc.

Viking FXO/FXS Smart Paging Interface Adapter FXI-1A Features & Specifications:

• Viking universal paging interface
• Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
• No power supply required in FXS interface mode
• Up to 6 units can be powered from one adapter in the FXO or VOX mode
• 30V DC talk battery for interfacing with FXO or unused phone system line input/trunk port
• Floating 600 ohm paging output with volume control
• Normally open or closed relay for external paging amp activation or interfacing the paging amp with an external background music source
• 800 Hz pre-announce page tone (on/off)
• Compatible with 24 to 48 volt FXS operation
• Calling party control (CPC) detection for immediate disconnect
• Busy signal detect disconnect
• 2.5 to 5 second VOX silence disconnect timer
• Programmable VOX trigger sensitivity
• 16 or 36 second default disconnect timer
• Screw terminal block connections
• Wall mount housing: (2) #6x3/4 panhead screws included
• Power: 12-24V DC @ 100mA, 120V AC/12V DC @ 500mA, UL listed adapter included (not required in FXS mode)
