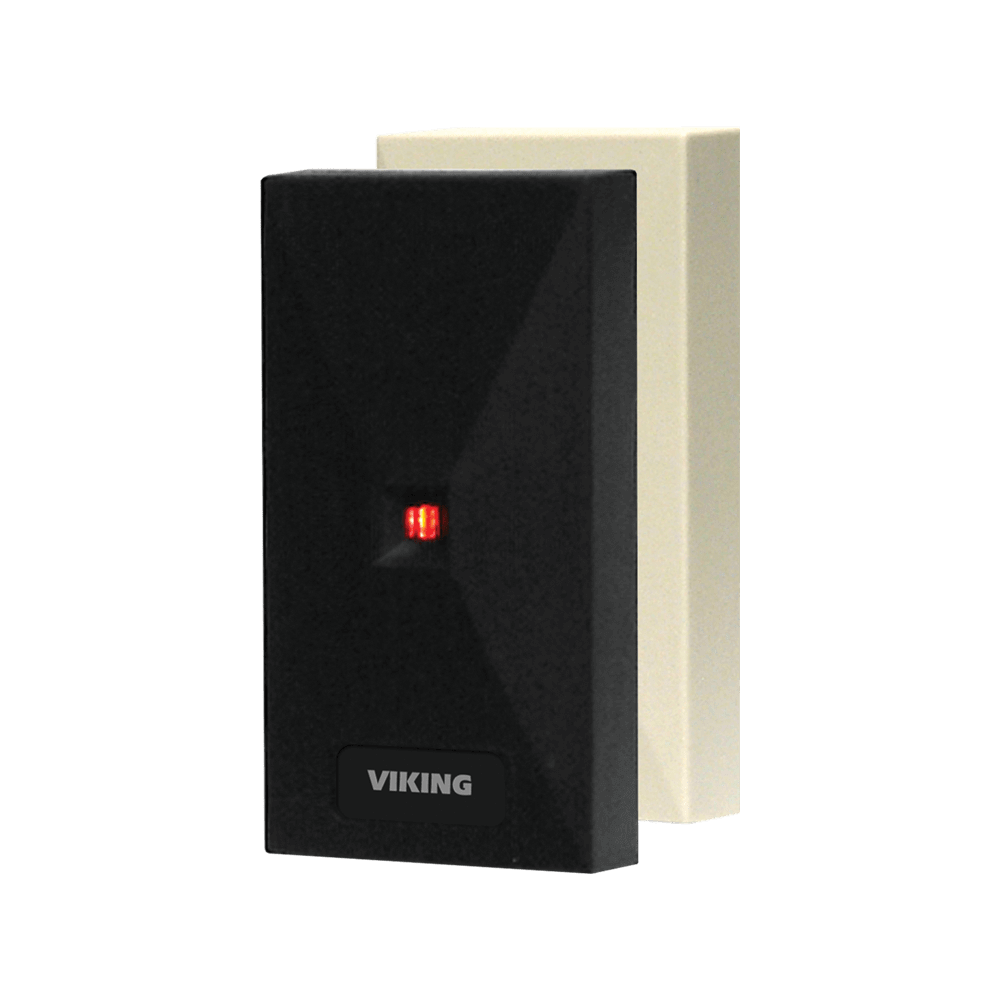

Viking Compact 125 KHZ Proximity Reader PRX-1

The PRX-1 is a 125KHz proximity reader designed for mounting directly on metal doors or window frames (mullions), making it ideal for access control applications requiring an access credential. It transmits data in a 26-Bit Wiegand format, ensuring compatibility with Viking’s Wiegand-equipped entry controllers, and offers non-contact read ranges of up to 6 inches while operating on 5 to 14 VDC. Equipped with Enhanced Weather Protection (EWP) for outdoor use, the PRX-1 features adjustable mounting slots, concealed hardware, and includes both Black and Ash (Off-White) covers for versatile installations.

Viking Compact 125 KHZ Proximity Reader PRX-1 Features & Specifications:

• Read range of up to 6 inches
• Standard 26-bit Wiegand interface
• Technologies supported: Viking PRX-C, PRX-C-ISO, PRX-FOB, LRT-4 certain legacy HID® proximity protocols* and certain AWID 125Khz proximity protocols**
• Compact size allows mounting to mullion, door or window frame
• Designed for outdoor use, the PRX-1 comes standard with Enhanced Weather Protection (EWP) (see DOD# 859 for more information)
• PRX-1 is designed to meet IP66 Ingress Protection Rating (see DOD 859)
• Pigtail connection for easy installation
• Red LED indicates power and flashes off during card read
• Transducer provides beep during card read
• CE marked
