Valcom VIP-814A (Discontinued)

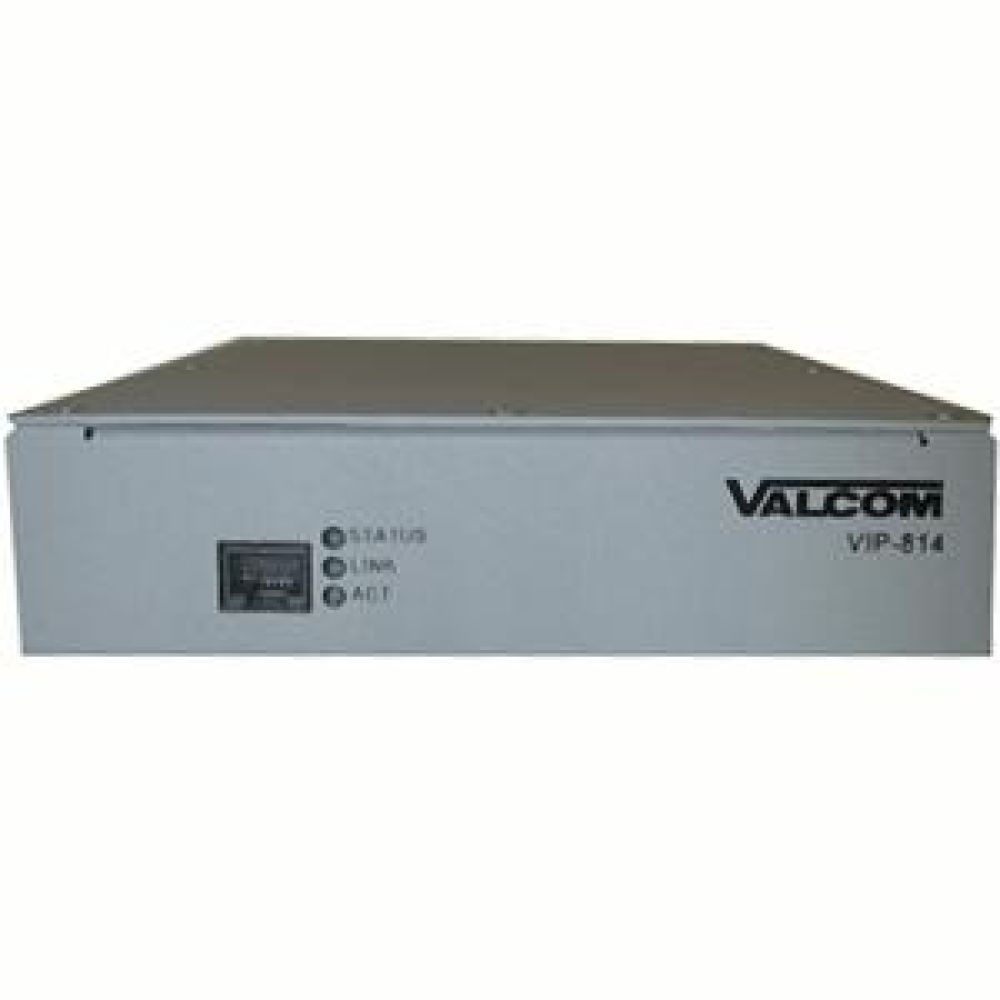

Valcom VIP-814A Quad Station (FXS) Port

The Valcom VIP-814A is an enhanced Networked Station Port which allows you to connect up to 4 analog phones to an IP network and engage in IP paging or phone to phone communications over an existing IP network.

Valcom VIP-814A Product Overview

Valcom Enhanced Network Station Port Model VIP-814A will provide a single 10/100 Ethernet port, 4 FXS station ports and 2 form C relay contact outputs. The VIP-814A will provide all circuitry and software to convert network data to audio output and analog telephone control signals. It also provides all circuitry and software to convert input audio and analog telephone events to zone page audio and control information suitable for transmission to other Valcom IP Solutions products. The Enhanced Network Station Port Model VIP-814 can be one part of a serverless Network based communications system.

Valcom VIP-814A Features:

• 4 FXS Port
• Peer-Peer, No Server Required
• Auto Destination Programmable
• DTMF Dial Select - 1024 Zones, Groups
• 1 to 11 Digit Dial Plans
• Two Way – Transmit / Receive
• POE 802.3af, Class 3, or Local Power 24 VDC
• Can Use DHCP Servers to Acquire IP Addresses
• Easy Windows® Based Setup
• Relay Closure for Ringing Indication, Audio Indication, Door Unlocking, etc,
• 1 RJ45 Ethernet Connection
• Front Panel Activity LED
• Network Activity LEDs
• Point to Point, Zones, Groups, All Call
• UDP, Multicast
• Caller ID Information - Various Options
