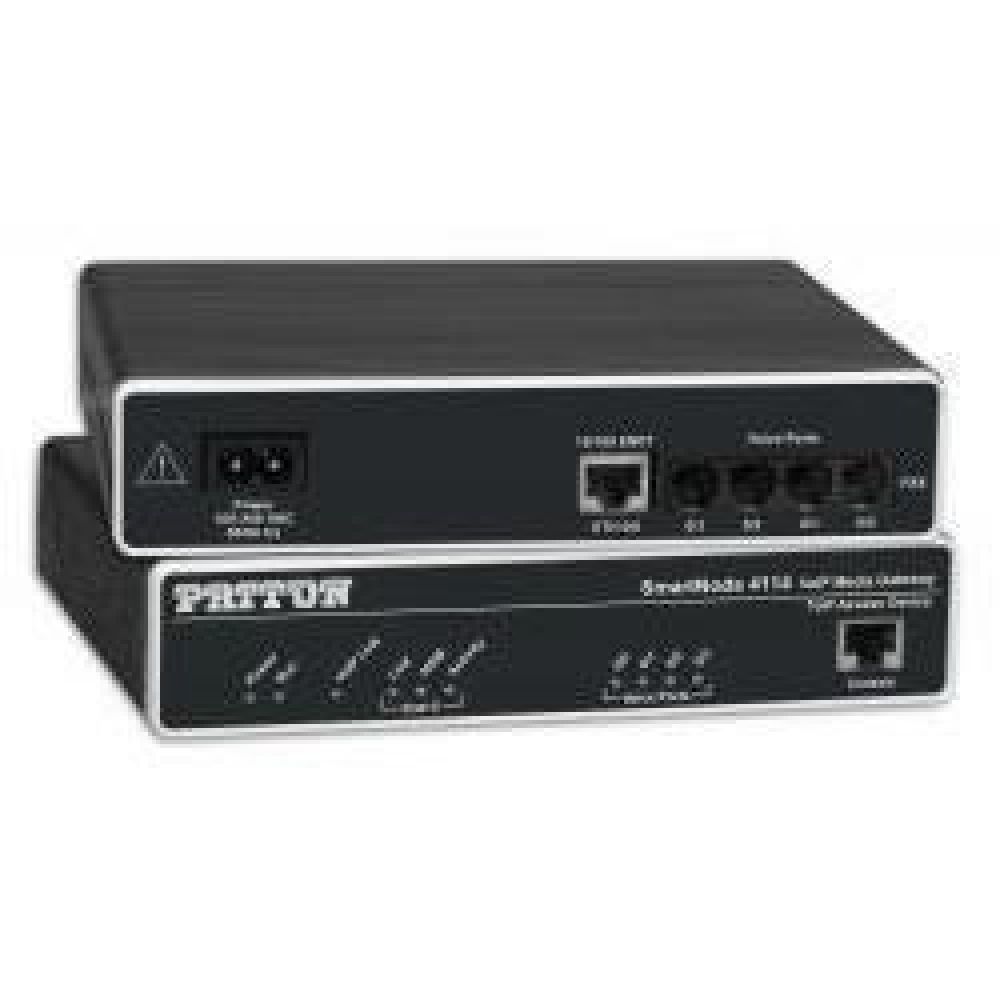

Patton SN4114 4-FXS VoIP Gateway SN4114/JS/EUI (DISCONTINUED)

Patton SN4114/JS/EUI 4 Port FXS Gateway

The Patton SN4114/JS/EUI VoIP Gateway features 4 FXS port for connecting analog devices such as telephones, fax machines, and modems to newer VoIP Systems.

Patton SN4114/JS/EUI Overview

The SmartNode 4110 Patton Gateway Series supports up to eight transparent phone calls while leveraging VoIP for lower-cost carrier and corporate access. Connecting to any analog phone, fax, or PBX, the SN4110 is an effective and flexible solution for toll-bypass, remote/branch office voice connectivity, and enhanced carrier services.

The SN4110 series is the perfect choice for phone-to-IP connectivity supporting up to 8 FXS ports or a combination of 4 FXS and 2 or 4 FXO ports. This model, the SN4114/JS/EUI, has 4 FXS ports. With its FXS analog ports the SN4110 connects to any legacy telephone or PBX and provides dial-tone, ringing, and caller-ID. When equipped with FXO ports, the local PSTN can be accessed enabling local calling and enhanced toll-bypass applications while using a single connected telephone. Flexible call integration allows per-port telephone numbers, programmable call progress tones, and distinctive ringing. With Telephony-over-IP (ToIP) call switching, calls can automatically select the least-cost-route while providing flexible numbering plans and end-to-end feature transparency. PPPoE, DHCP, and VLAN offers universal IP connectivity and optional IPSEC VPN with AES/3DES guarantees secure voice over the public network.

Patton's SmartNode 4110 delivers the legacy phone interfaces, service transparency, and flexible PSTN integration for true converged packet voice.

• - 10/100 Full-Duplex Auto-Sensing Auto-MDX Ethernet port
• - 14 LEDs for System, Ethernet, and Call status
• - Universal 100-240VAC (contact us for 48VDC Power)
• - Configuration and Management through Webinterface, CLI, Telnet, Console and SNMP
• - Up to 4 Voice and FAX Calls over IP Support-Use any CODEC or T.38 FAX on any port, any time
• - 4 FXS ports connect to your standard telephone with programmable tones, ringing, CLIP etc.
• - Programmable call routing switches between any FXS, FXO and IP connection.
• - Toll Quality CODECs and T.38 FAX-Use standard G.711 or G.726 Codecs for toll-quality or G.723.1 or G.728ab for low-bandwidth applications. T.38 FAX and FAX Bypass features allow high-quality FoIP.
• - H.323v4, SIP Signaling-Deploy into any enterprise or carrier softswitch network with the leading call and session signalling protocols. Maximize Interoperability to create advanced multimedia and messaging services.
