Sangoma A200-FXS

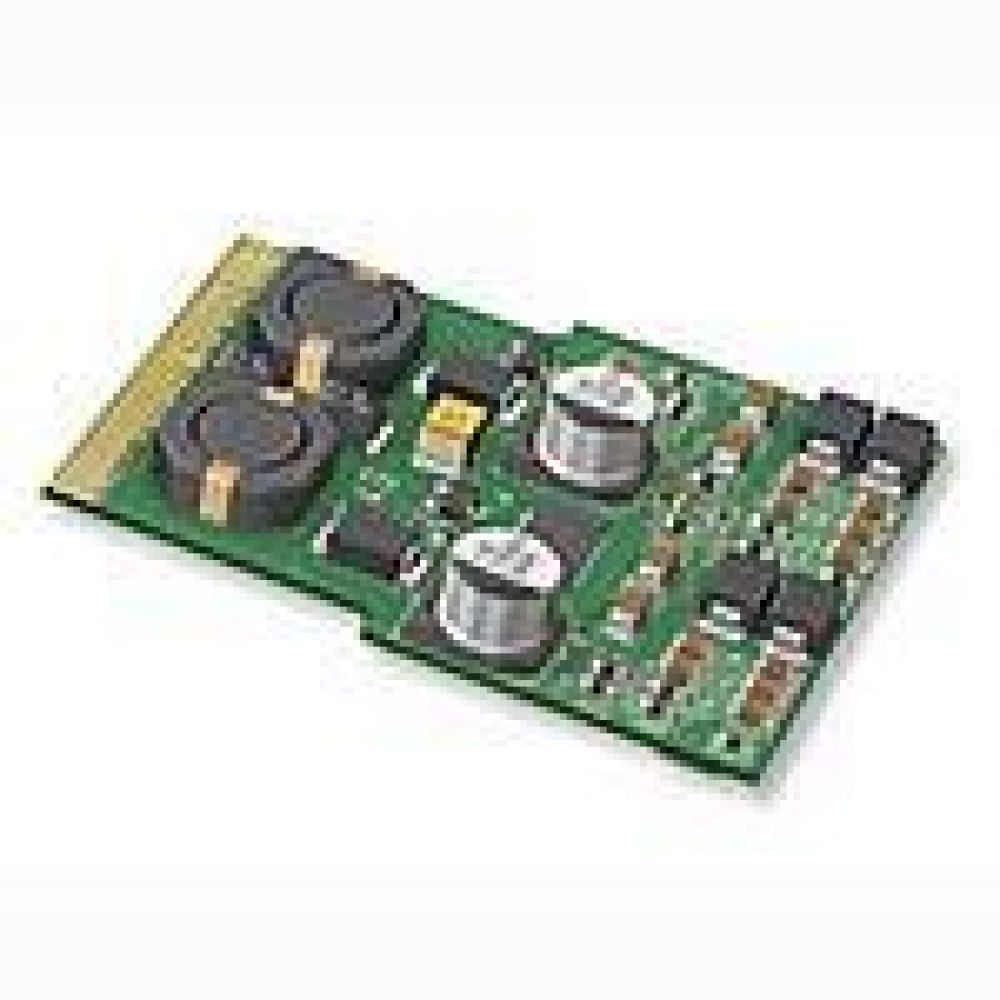

Sangoma A200-FXS FXS Module

Sangoma voice/data cards are designed for compatibility and flexibility. They are self sensing for 3.3v and 5v PCI slots and software configurable for T1/E1 or J1. They share interrupts properly between themselves and other PCI compatible devices, supporting unlimited numbers of cards per PC chassis. The AFT series cards all conform to the 2U form factor specification, both in height and length, allowing you to install many cards in a 2U chassis so as to maximize your server capacity. By selecting Sangoma voice/data, and Analog cards, you can deploy AsteriskTM with confidence. The reason: the engineering quality and after-service support that has won the trust of many customers.

Sangoma A200-FXS FXS Module Overview

Sangoma cards put your company at the leading edge of technology. For AsteriskTM applications, they are your best choice in their class for reliability, price, support and ease of installation.

• From 2 to 24 ports supported, mixing FXO and FXS interfaces as required.
• Support for the Asterisk, OPALTM PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications.
• Single synchronous PCI interface for all 24 FXO/FXS ports.
• Four RJ11 ports per REMORA card.
• Dimensions: 2U Form factor: 120mm x 55 mm for use in restricted chassis.
• Short 2U compatible mounting clips available for installation in 2U rackmount servers.
• 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention.
• Autosense compatibility with 5v and 3.3v PCI busses.
• Fully PCI 2.2 compliant, compatible with all commercially available motherboards, proper interrupts sharing.
• Intelligent hardware: Downloadable Field Programmable Gate Array programming with multiple operating modes. Field flash firmware upgradeable so that new features related to voice and/or data can be added when they become available.
• External LED to easily identify FXO or FXS port.
• Guaranteed machine compatibility, like all Sangoma hardware.

Sangoma A200-FXS Features and Functions

• Optional DSP daughterboard on the A200d
• G.168-2002 echo cancellation in hardware.
• 1024 taps/128ms tail per channel on all channel densities.
• DTMF decoding and tone recognition.
• Voice quality enhancement: Octasic music protection, acoustic echo control and adaptive noise reduction
