Sangoma A200 PCI Card Configurator

main product photo
Loading...
Become A Sangoma Reseller Today
Become A Sangoma Reseller Today Become A Sangoma Reseller Today Become A Sangoma Reseller Today Become A Sangoma Reseller Today Become A Sangoma Reseller Today Become A Sangoma Reseller Today

The Sangoma A200 series has been marked End of Life by the manufacturer. For a comparable product please see the Digium A4A Series or the Digium A8A Series

Log in for lower price

Availability: Out of stock
SKU
02-a200pci
MPN
Variess
The Sangoma A200 PCI Card Configurator is a tool which allows you to build any Sangoma A200 PCI card. The Sangoma A200 PCI card is an analog telephony card which offers up to 24 FXS or FXO ports and has the option to add on-board hardware based echo cancellation.
Add to Compare

Sangoma A200 PCI Analog Telephony Card Configurator

The Sangoma A200 PCI Analog Voice Card delivers superior audio quality in a compact 2U card that expands from two to twenty-four ports using a single PCI interface slot.

Sangoma A200 Analog Telephony Card Overview:

For optimum echo-cancelled voice quality and enhancement choose the A200D Model with DSP daughterboard Hardware Echo Canceller. One DSP echo canceller on the A200D Base Card will support Telco-grade hardware echo cancellation on all channels up to the card's maximum configuration in 24 ports with no additional CPU load. You can use this configurator to build any Sangoma A200 PCI telephony card up to 24 ports with or without on-board hardware-based echo cancellation.

Like all the cards in the award-winning Sangoma AFT Series Product Line, the A200 and Remora™ system's architecture is shared with Sangoma's A101, A102, A104, and A108 cards, ensuring common 3.3 V or 5 V, high performance, universal PCI or PCI Express compatibility, and crash-proof field upgradable firmware to take advantage of enhancements, as soon they become available.

Sangoma cards guarantee error-free faxing and click-free audio on analog-digital links.

Sangoma A200 PCI Card Technical Specifications

  • Support for the Asterisk®, FreeSWITCH®, Yate™, CallWeaver™, PBX/IVR projects, as well as other Open Source and proprietary PBX/Switch/IVR/VoIP gateway applications

  • Single synchronous PCI interface for all 24 FXO / FXS ports

  • Four RJ11 ports per Remora™ card

  • Dimensions: 2U Form factor: 120mm x 55 mm for use in restricted chassis

  • Short 2U compatible mounting clips available for installation in 2U rack-mount servers

  • 32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention

  • Autosense compatibility with 5 V and 3.3 V PCI busses

  • Fully PCI 2.2 compliant, compatible with all commercially available motherboards, proper sharing of PCI interrupts

  • Intelligent hardware: Downloadable Field Programmable Gate Array programming with multiple operating modes. Field upgradeable so that new features can be added when they become available
  • Maximum operational power for PCI: 3.75 W (0.75 A @ 5 V) + 4.2 W (0.35 A @ 12 V) per FXS module
    For PCI Express: 2.64 W (0.8 A @ 3.3 V) + 4.2 W (0.35 A @ 12 V) per FXS module
  • Temperature range: 0 - 50°C
  • Shipped with standard RJ11-terminated cables

    • Get the Fax on Sangoma Hardware

    • With Sangoma, there is no need for a separate analog line to run your fax machine
    • Using T1/E1 passthrough with Sangoma analog cards, there are no clock slips, buffer overruns, or transmit underruns that cause missed lines, blank sheets, and missed pages when faxing
    • Sangoma A200 and A400 cards synchronize perfectly with digital T1/E1 cards and the PSTN atomic clock for error-free fax and modem passthrough and superior voice quality over T1 and E1 lines

    Optional DSP Echo Canceller Daughterboard on the A200D

    • G.168-2002 echo cancellation in hardware
    • 1024 taps/128ms tail per channel on all channel densities
    • DTMF decoding and tone recognition
    • Voice quality enhancement: music protection, acoustic echo control and adaptive noise reduction
    • No CPU load as a result of echo cancellation
    • Does not increase the physical size of the card, and no additional slot is required

    Wiring Connections

    • The A200 and Remora™ cards incorporate 4-pin RJ11/4 narrow jacks, such as those used in telephone handsets
    • Each Sangoma A200 Card is shipped with four 2 m cables terminating in a narrow RJ11/4 plug at one end and a telephone-standard RJ11/6 plug at the other
    • To hardwire the A200 system, you can purchase a kit of 12 RJ11/4 plugs and a crimping tool, sold separately

    Operating Systems

    • Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
    • Linux (all versions, releases and distributions from 1.0 up)

    Certifications

    FCC Part 15 Class A, FCC Part 68, and EN 55022 Class A, JATE
    Technical certifications in Russia and Malaysia

    Diagnostic Tools

    WANPIPEMON®, SNMP, system logs

    Architecture

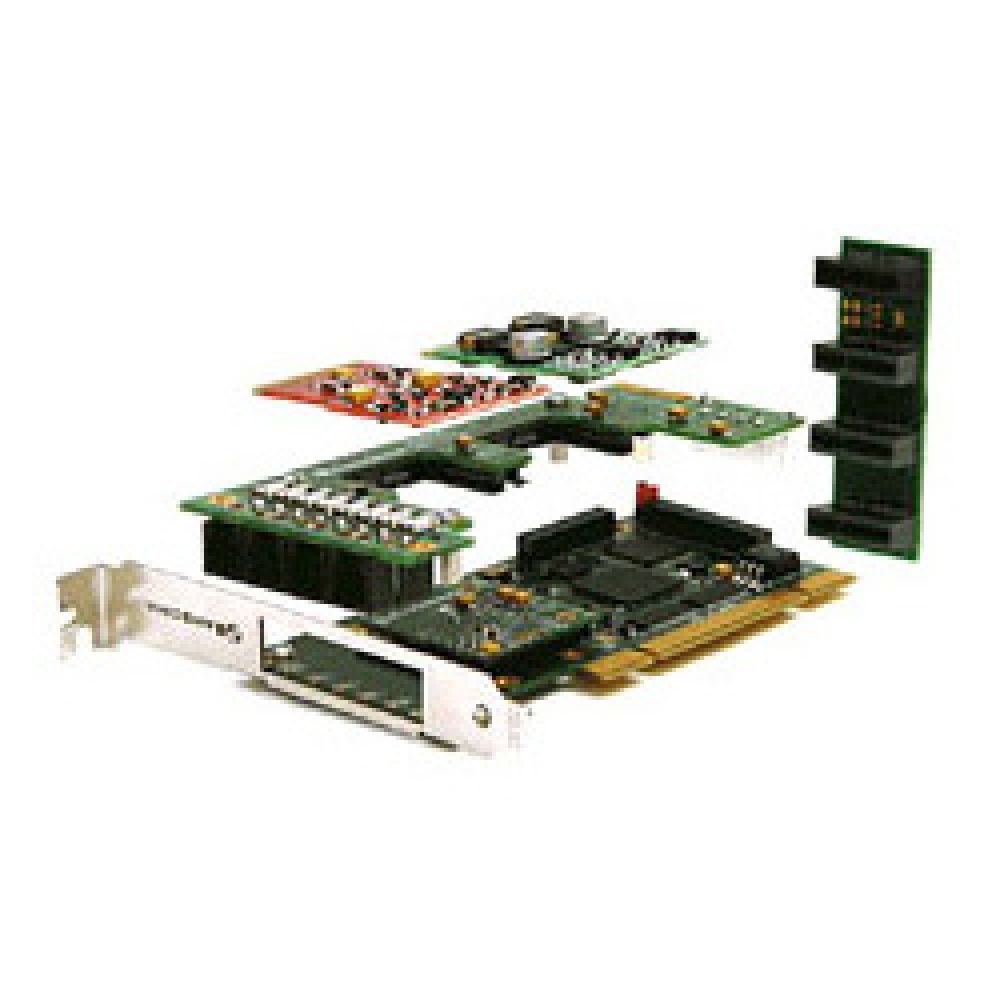

    The A200 consists of a Remora™ daughterboard mounted on the AFT PCI card. The Remora card has two sockets each of which can accept a FXO-2 or FXS-2 module. Each FXO-2 or FXS-2 module supports two FXO or FXS lines, respectively.

    Up to five additional Remora™ daughterboards can be mounted in empty slot positions beside the A200 assembly, connected to the A200 by a backplane bus connector.

    Production Quality

    ISO 9002

    Warranty

    Lifetime warranty on parts and labour when purchased through VoIP Supply.

    30-day "no questions asked" return policy.

    More Information
    SKU 02-a200pci
    Shop By Brand Sangoma
    Model Varies
    MPN Variess
    MSRP $0.00
    Manufacturer Warranty Lifetime
    Analog Module Type Dual Span (2 Ports)
