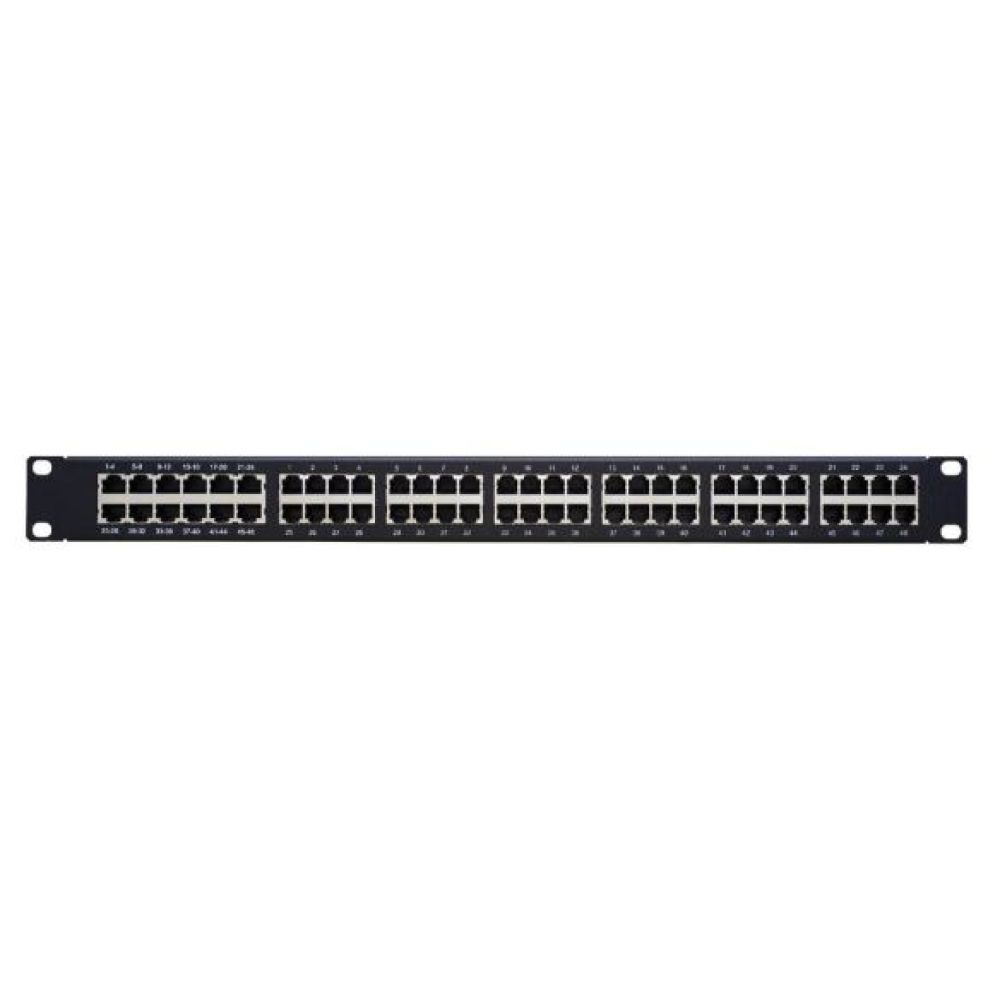

Redstone Systems 48 Ports Protected Distribution Panel PT4800

• Number of RJ45 ports available 12
• Number of RJ11 ports available 48
• Surge protection Common mode(TIP/RING, each line)
• Operating voltage ≤184V
• DC breakdown voltage 230V(±20%)
• Pulse breakdown voltage ＜600V @ 1000V/uS
• Max. discharge current 250A @ 10/700uS
• Severity level for lightening strike test* 6.0kV @ 10/700uS
• Insertion loss ＜12Ω，＜1.5pF
• Chassis material Galvanized steel
• Installation Flush mount
• Color coding standard for twisted pair cable 568B
• Twisted pair cable type Recommended: CAT4 Compulsory: CAT3
• Cross-sectional area of grounding cable 2.5 mm2
• Ground connection Screw lug
• Dimensions (H × W × W) 1.49 × 18.90 × 4.53 in. (43 × 480 × 115 mm)
• Weight 2.27 lb (1.03 kg)
• Operating temperature** -40 to185°F (-40 to 85°C)
• Standard compliance RoHS, IEC61000-4-5:2005, GB_T17626.5-2008

* The Severity level for lightning strike test is the maximum voltage that the device can withstand under the protection of the product.

** It is recommended to maintain the operating temperature under 140°F (60℃) when connecting high-current device.
