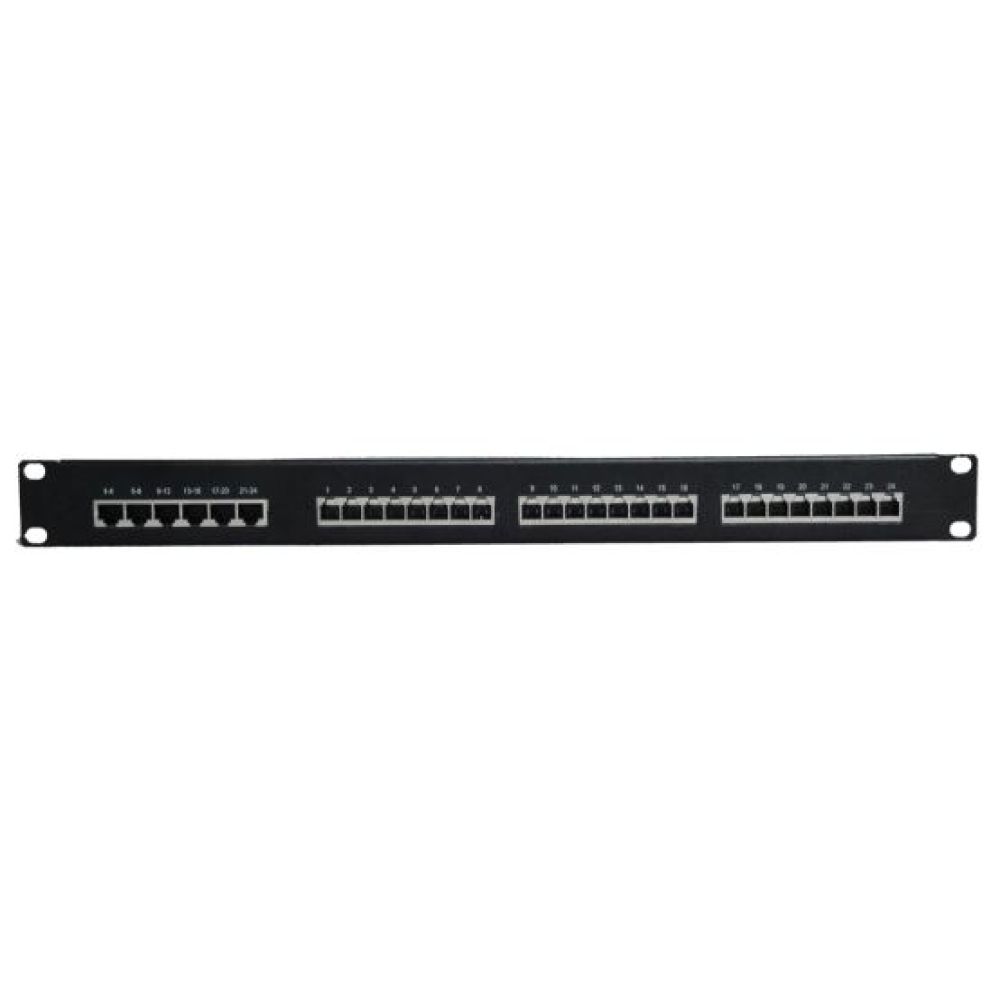

Redstone Systems 24 Ports Protected Distribution Panel PT2400

• Number of RJ45 ports available 6
• Number of RJ11 ports available 24
• Surge protection Common mode(TIP/RING, each line)
• Operating voltage ≤184V
• DC breakdown voltage 230V (±20%)
• Pulse breakdown voltage ＜600V @ 1000V/uS
• Max. discharge current 250A @ 10/700uS
• Severity level for lightening strike test* 3.5kV @ 10/700uS
• Insertion loss 0Ω，＜1.5pF
• Chassis material Galvanized steel
• Installation Flush mount
• Color coding standard for twisted pair cable 568B
• Twisted pair cable type Recommended: CAT4 Compulsory: CAT3
• Cross-sectional area of grounding cable 2.5 mm2
• Ground connection Screw lug Dimensions (H × W × W) 1.49 × 18.90 × 1.81 in. (43 × 480 × 46mm)
• Weight 1.41 lb (0.64kg)
• Operating temperature -40 to194°F(-40 to 90°C)
• Standard compliance RoHS, IEC61000-4-5:2005, GB_T17626.5-2008

* The Severity level for lightning strike test is the maximum voltage that the device can withstand under the protection of the product
