Patton SmartNode SN4740 Analog Gateway SN4741/24JS24V/RJ21/EUI

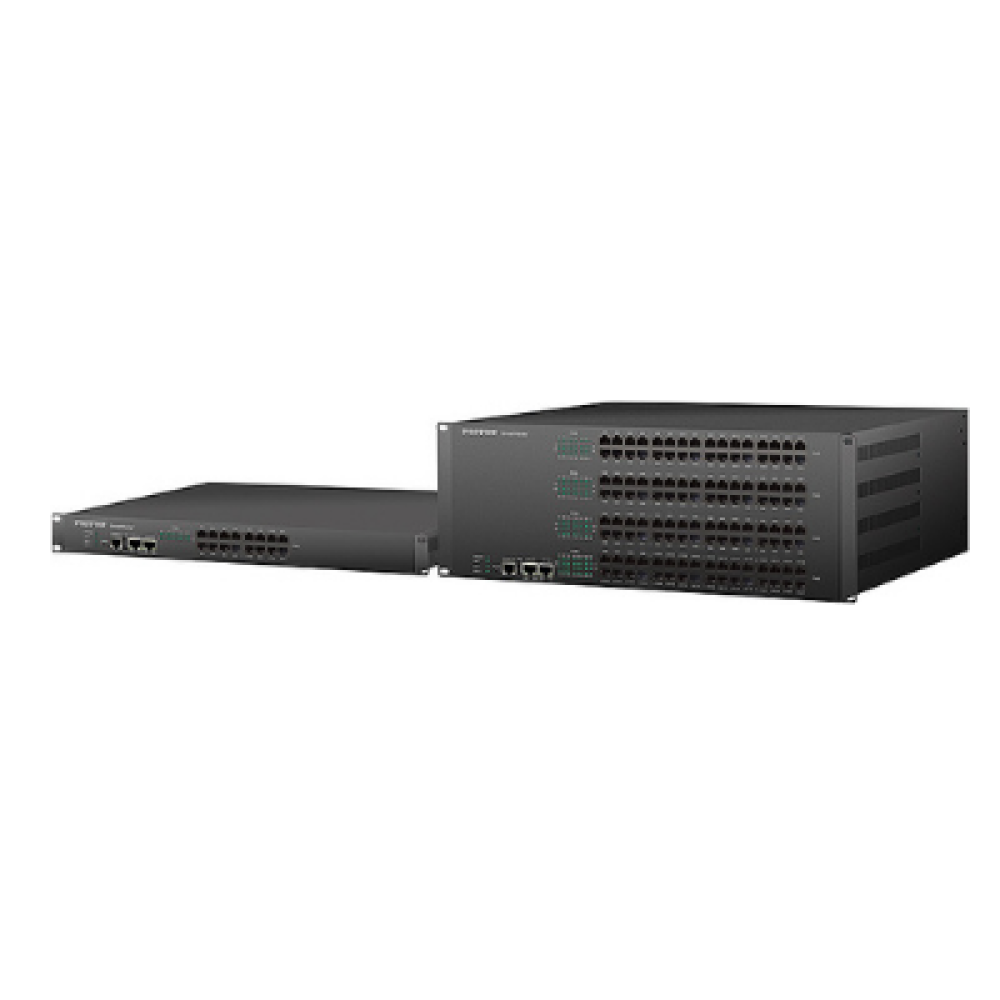

Patton SmartNode SN4740 High-Density Gateway SN4741/24JS24V/RJ21/EUI Overview

The Patton SmartNode 4740 Series High-Density Gateways can connect phones, fax or PSTN trunk lines to your All-IP based UC system such as SIP Trunks, IP PBXs, Hosted solution, etc. The SN4740, like every other SmartNode, supports every industry-standard Codec in order to provide toll-quality voice on every call. Using Patton Cloud's Call Quality Assessment and Monitoring functions, together with E-Mail or SMS notification, it ensures meeting Service Level Agreements at the customer premise with no effort. By using Patton Cloud's remote access functions, it is possible to prevent Call Quality issues and reduce the time it takes to fix them. The advanced call-routing feature includes least-cost call routing as well as dialed-number plan flexibility. In the event that the IP network fails, the SmartNode survivability suite offers SIP Trunk and PSTN fallback to ensure business continuity. Furthermore, the SmartNode ensures a seamless transition to All-IP by accepting incoming calls from the PSTN while the VoIP service provider's number porting process is in progress.

Patton SmartNode SN4740 High-Density Gateway SN4741/24JS24V/RJ21/EUI Features

• 24 FXS on RJ21-50pin
• 24 VoIP Calls upgradeable to eSBC (max. 200 SIP calls)
• 2x Gig Ethernet
• 1x USB
• 1x Console
• Single External UI power (100–240 VAC)
• Made in the USA
