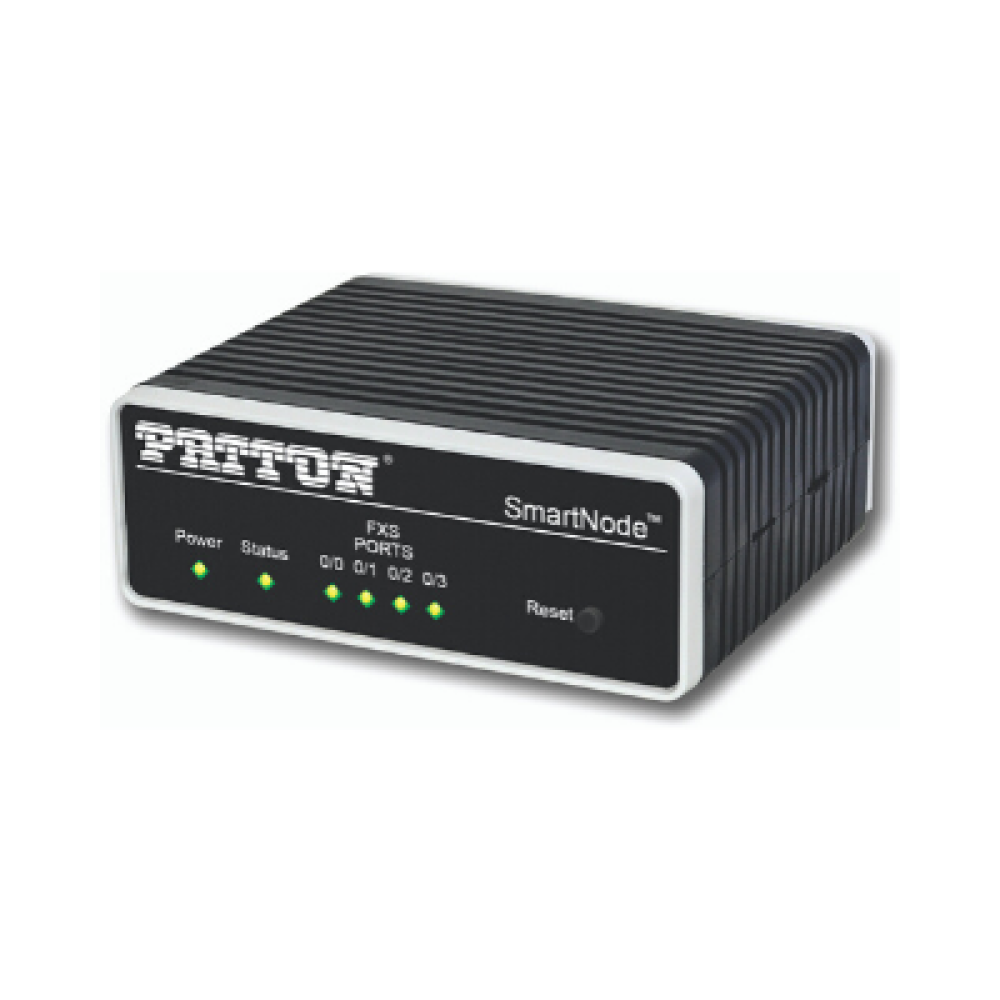

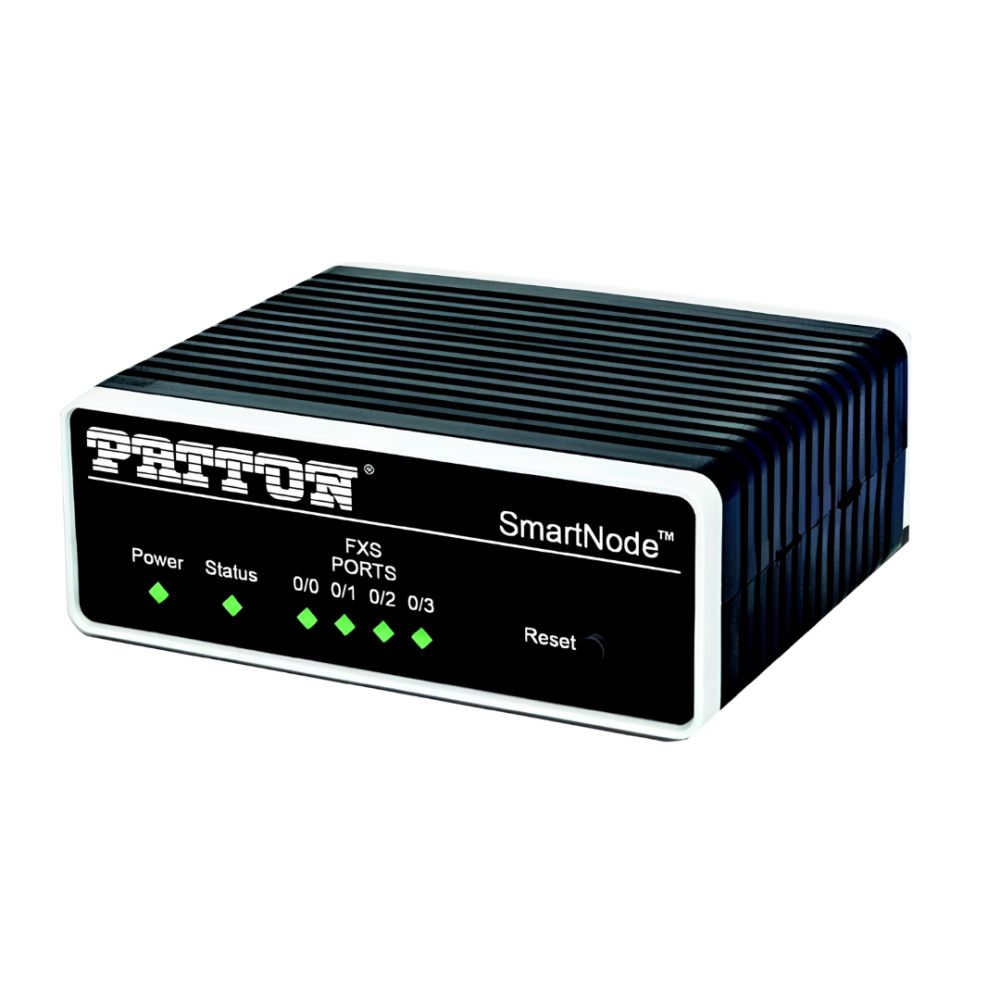

Patton SmartNode SN200 Gateway (SN200/2JS2V/EUI)

Connect legacy telephony equipment to common SIP trunking and hosted services with the SmartNode SN200 Series. The SN200 Series supports several different interfaces, from 1 to 4 simultaneous calls. The SN200/2JS2V/EUI contains 2 FXS ports and provides Telco operators and enterprise users a cost-effective solution integrating legacy phones, fax, and meeting machines into an All-IP network. With Secure Zero-touch, mass provisioning is standard and included in every SN200 model.

Whether you are using the SN200 as an ATA, connecting to legacy telephones to an IP PBX, or as a VoIP Gateway integrating legacy fax machines into a hosted UC environment, the SN200 adapts to every use-case scenario. Operated, managed, and administrated through the Patton Cloud proactive notification in case of a customer network problem, helping to reduce service downtimes and increase customer satisfaction.

Patton SmartNode SN200 Gateway (SN200/2JS2V/EUI) Features & Specifications:

• 2 FXS ports
• Up to 4 simultaneous G.722 or G.711 or T.38 fax calls
• G.168-2004 echo cancellation (64 ms)
• 2-wire Loopstart – RJ11/12
• One 10/100 Base-T Ethernet port
• Patton Cloud-managed
• Built-in diagnostic tools
• TR-069, TFTP, HTTP, HTTPS configuration/firmware up-and-download
