The Patton FP2008E/2SFP/8AT/24DC Managed Industrial PoE+ Ethernet Switch is a fully manageable Layer 2 PoE+ switch that comes equipped with an easy-to-use web management console design

Details

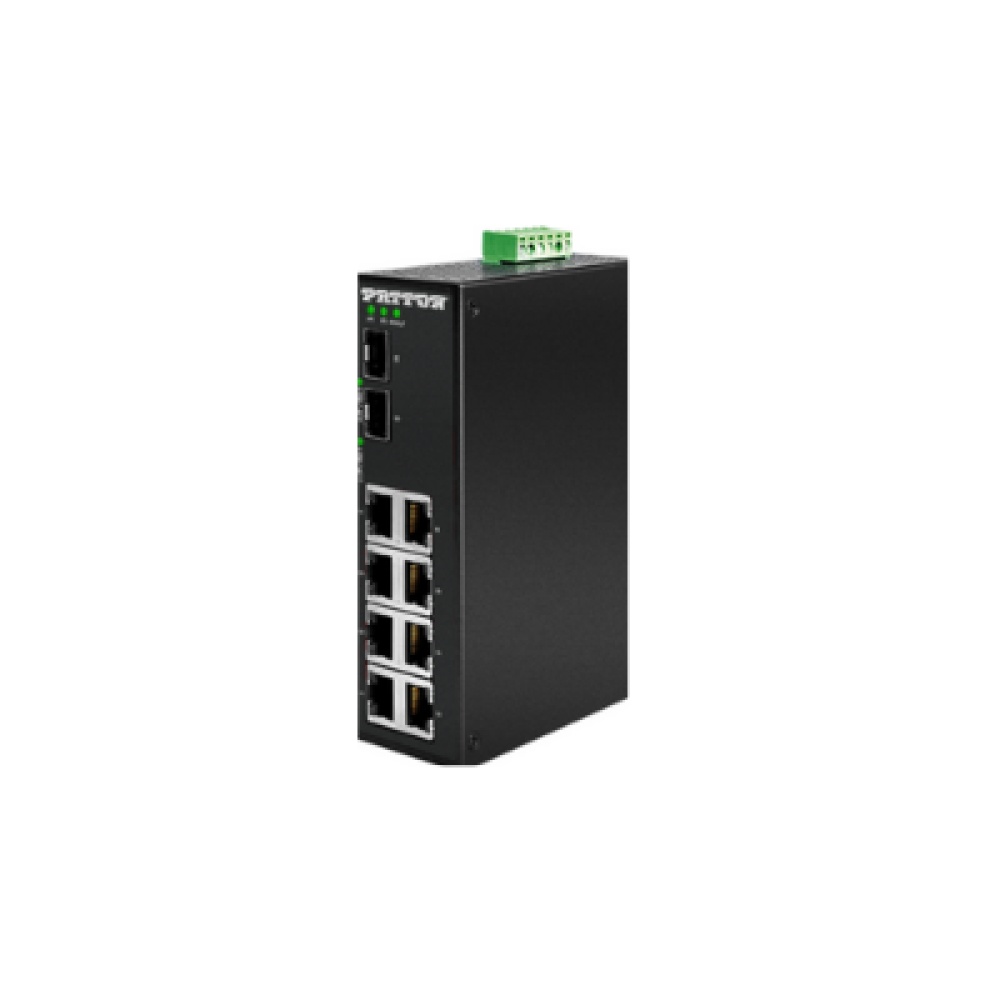

Patton FP2008E/2SFP/8AT/24DC Managed Industrial PoE+ Ethernet Switch Overview

The Patton FP2008E/AT is Managed Industrial Gigabit Power Over Ethernet Switch is ideally suited for industrial type applications and environments that need high bandwidth or high-density connections. The Patton FP2008E/AT is protected by an IP30-rated DIN enclosure with wall mount options available. With 8 10/100/1000TX ports, it supplies up to 30W of PoE+ to PoE+ enabled end-points as well as two Gigabit SFP+ slots that can be utilized for fiber trunk connections. With an operating temperature of -40 to 167°F (-40 to 75°C) the Patton FP2008E/AT can perform in intense weather environments it even supplies an added EFT and ESD protection that prohibits unregulated voltage or harmful transients.

Patton FP2008E/2SFP/8AT/24DC Managed Industrial PoE+ Ethernet Switch Features

Supports auto MDI/MDI-X function 10 ports include 8 10/100/1000TX RJ45 IEEE802.3at/af (30W) compliant ports and 2 100/1000 SFP cages
IGMPv1/v2 up to 256 groups
8K MAC address table
9.6K Jumbo frame supports
ESD protection: 6,000 VDC
-40 to 167°F (-40 to 75°C)
