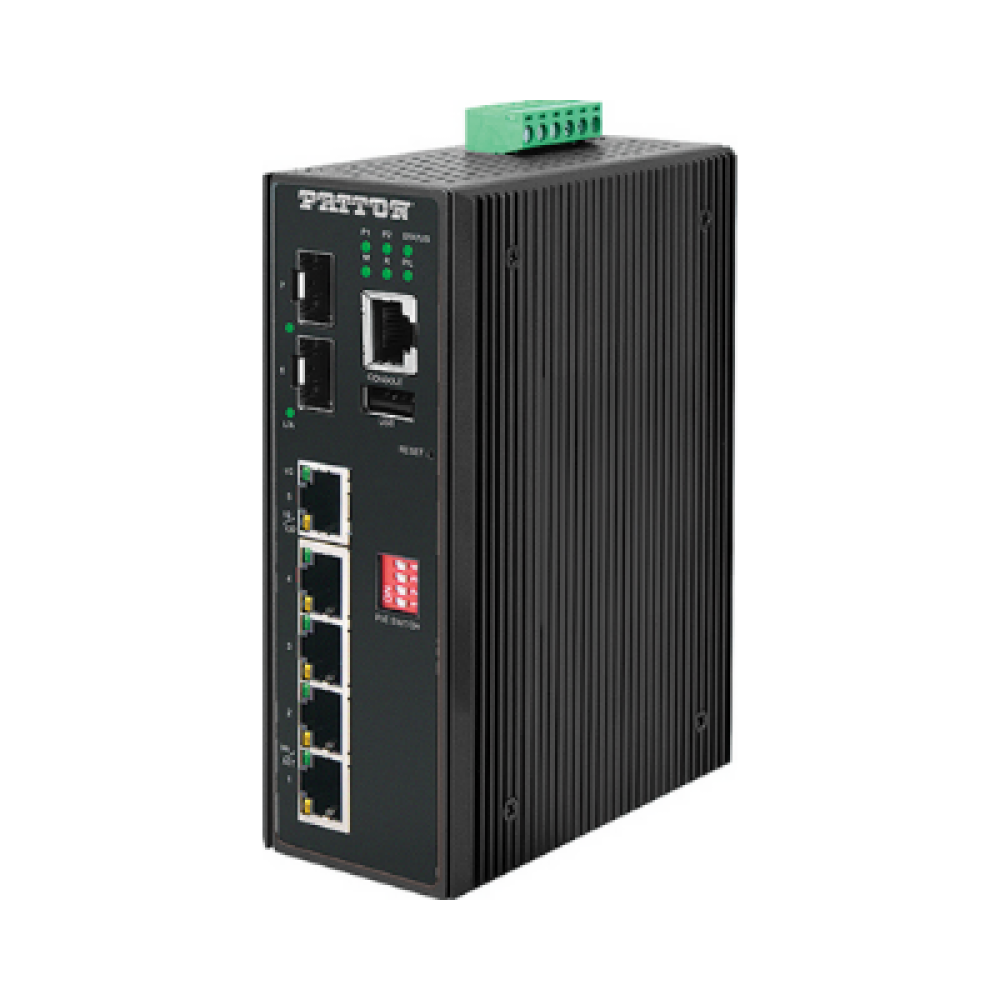

Patton FiberPlex Managed Industrial PoE+ Switch FP2005E/2SFP/4BT/48DC

Patton FiberPlex Managed Industrial PoE+ Switch FP2005E/2SFP/4BT/48DC Overview

The FP2005E/BT is a 7-port 90W Power over Ethernet switch designed for industrial Ethernet communications over a gigabit fiber trunk with a modest bandwidth. This switch's light Layer 3 management enables it to deliver dependable redundant connections throughout your network. The FP2005E/BT is a fully controllable Light Layer 3 Ethernet switch with a user-friendly online administration interface design. It provides ring network redundancy by utilizing the market's open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol, which has a network recovery time of 50ms. Advanced network filtering and security capabilities like IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL boost overall determinism and administration for remote SCADA systems or control networks. The FP2005E/BT has an IP30 rating and may be mounted on a DIN-rail. For industrial networking applications such as power/utility, water/wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment, it also delivers excellent EFT and ESD protection.

Patton FiberPlex Managed Industrial PoE+ Switch FP2005E/2SFP/4BT/48DC Features

• 1 x 10/100/1000
• 4 x PoE BT 10/100/1000
• 2x GigE SFP
• - 40 -75C, 48-55VDC input
• Built-in relay output for power failure detection
• Surge protection: 2,000 VDC support
• IP30 rugged metal case
• DIN-rail and wall mount support
• Made in the USA
