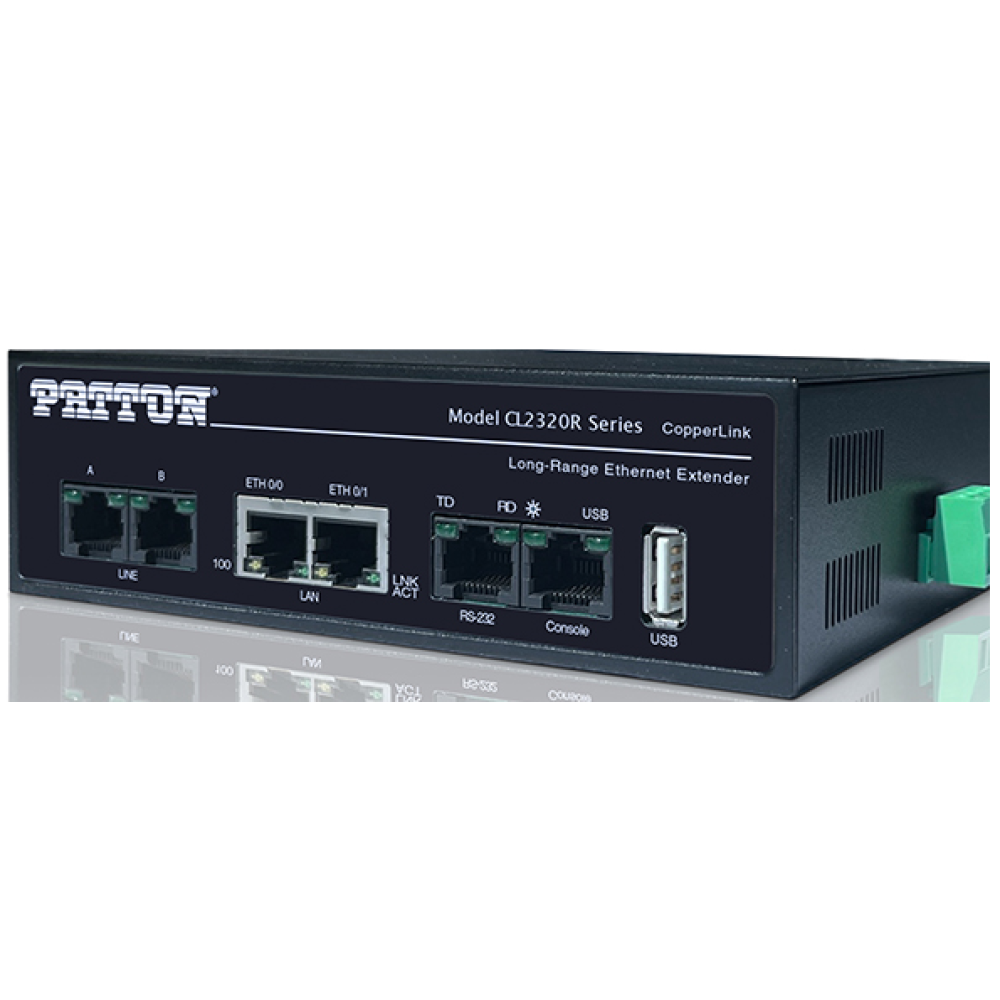

Patton CopperLink Long Range Ethernet+RS-232 Extender CL2322R/DC

Features:

• Ethernet and Serial - Ethernet and RS232 Extension and Distribution. Two 10/100 Ethernet Ports and One RS232 Async Port.
• High Speed Transport - Achieves 15Mbps over 1 twisted pair. Symmetrical rates are automatically adapted to the copper line conditions (noise environment, wire gauge/type and length).
• All Topologies - Supports point-to-point, multi-point, daisy-chain, and ring topologies.

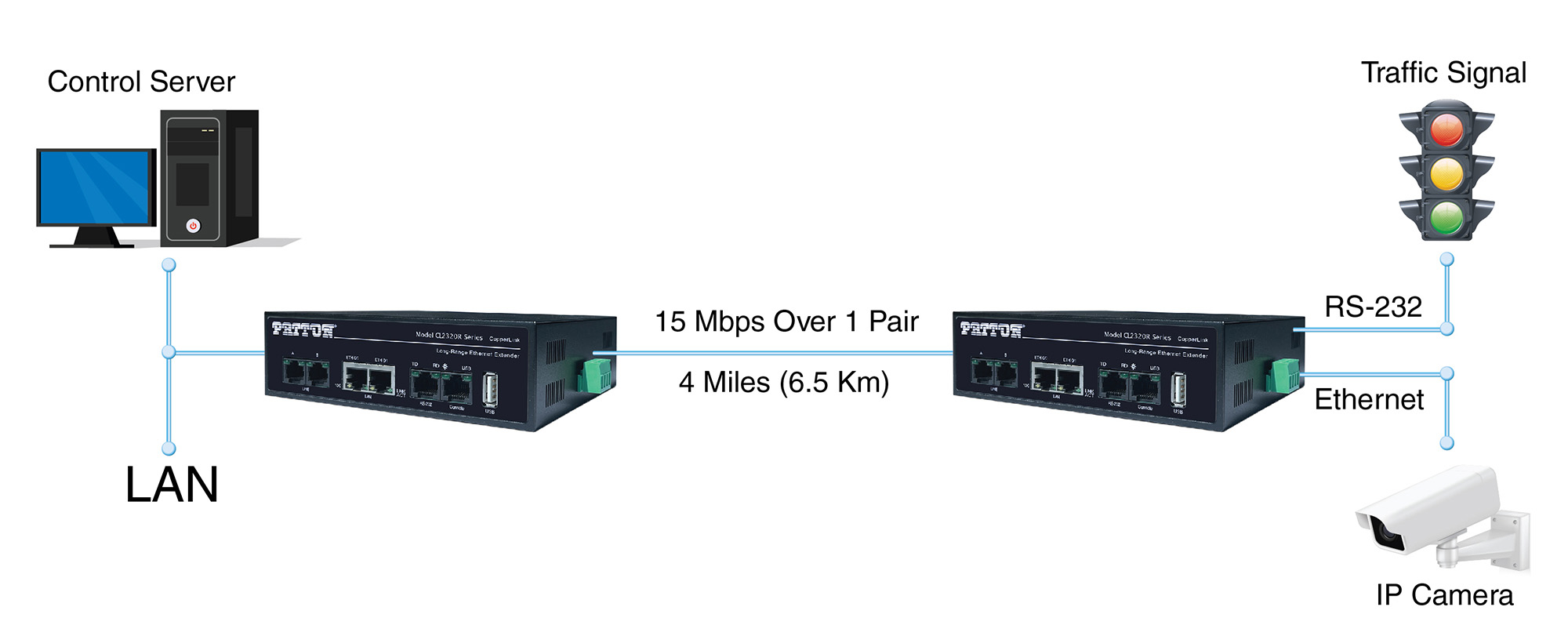

• Long Range - Supports distances of 4 miles (6.5 km) for each span. The number of remote sites and total distance is almost unlimited based on the bridging and repeating capabilities.
• Serial Device Server - It has an asynchronous serial to IP converter function (encapsulation) over UDP and TCP plus Telnet, Raw-IP, Message/Bloc, HNZ and MODBUS adaptation suitable for industrial data acquisition and control. Serial Master/Slave multipoint modem emulation.
• QoS Traffic Prioritization - Rate Limiting and Priority Queuing functions enable prioritization of traffic types, such as time sensitive signaling or video streams. IP/DSCP, VLAN 802.1Q, Priority Queuing.
• Packet Forwarding - A store and forward engine performs optimal packet forwarding, delivering the lowest latency for end-to-end transfer.
• Highly Secure - Network access is secured by various standards for authentication and access control. STP, RSTP Secured Ring, 802.1X, and Radius.
• Management - via local USB port (Host/Device), via SSH, HTTP, HTTPS, SNMP, FTP and intuitive Web User Interface.
• Ruggedized - Built into sturdy metal enclosure offering operating temperatures from -20 to +70°C, without fans, so it works in industrial environments with hot, cold, or humid conditions.
• Flexible Mounting - It comes with DIN rail mounting kit for panel builds and can also be installed in a 19” rack.
