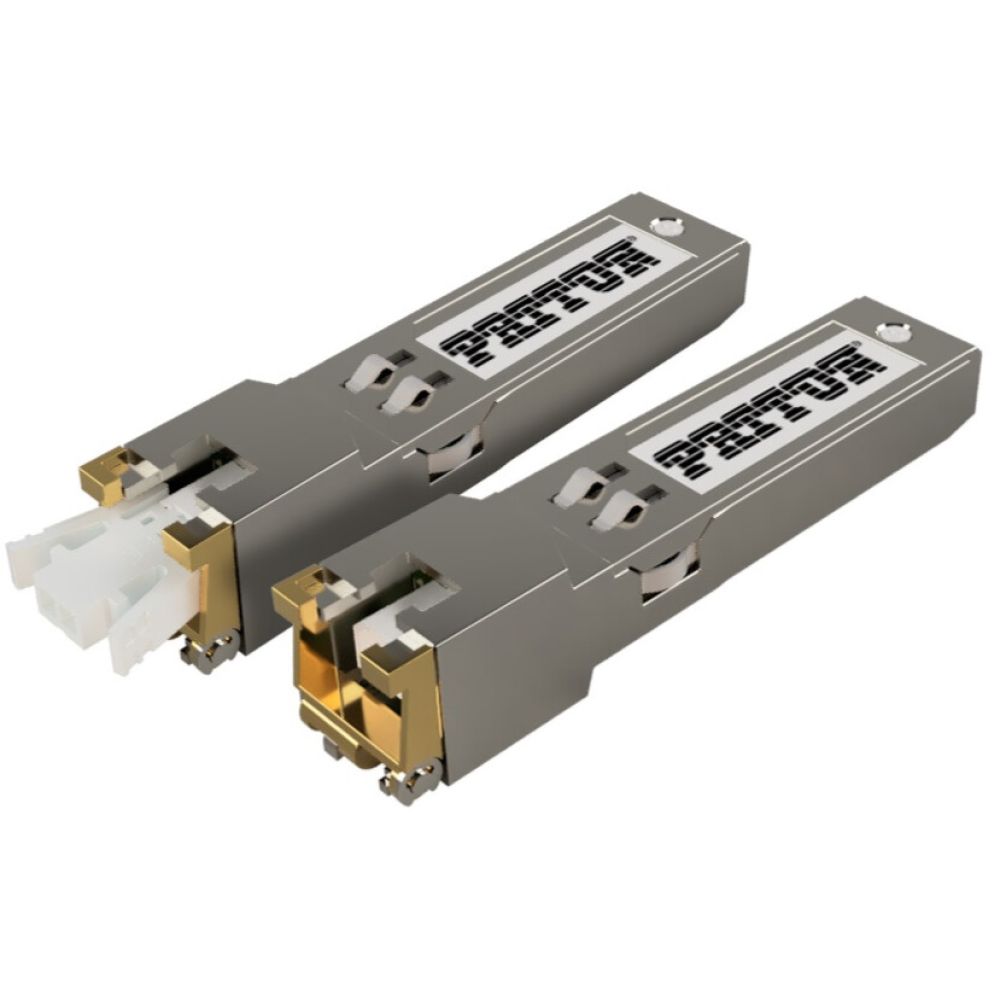

Patton CopperLink CL-SFP/XC Module

The Patton CopperLink SFP is a low-power Ethernet-over-Copper Extender that plugs into any router, switch, or media converter with SFP slots supporting 100BASE-FX or 1000BASE-X. It supports distances up to 3.5 miles over a single pair of wires with full duplex rates from 1.5 to 18 Mbps. Using Pulse Amplitude Modulation (PAM) technology, it reduces interference, ensuring safer and more reliable transmission. Configured via a Web GUI or CLI, it offers both fixed and auto-adaptive transmission rates, with fast link synchronization and 1500V RMS isolation.

The CopperLink SFP also features link quality monitoring and fast link recovery. It supports IEC 63171-6 and Combicon XC connectors for wire termination.

Patton CopperLink CL-SFP/XC Module Features & Specifications:

• SFP Ethernet Extender - Hot-pluggable SFP module Extends 100BASE-FX/1000BASE-X Ethernet over 3.5 miles (18,000 feet, 6.2 Km) using 2-wire twisted-pair.
• Superior Bandwidth - Supports composite wire speeds of 1.5 Mbps to 18 Mbps Bi-directional Data Transmission.
• Isolation & Overvoltage Protection - The copper line interface has 1500V RMS or 2250V DC isolation and its protection meets ITU-T Rec. K.20/K.21.
• SFP Compliant - Fully Complies with SFP MSA Specification.
• and more!
