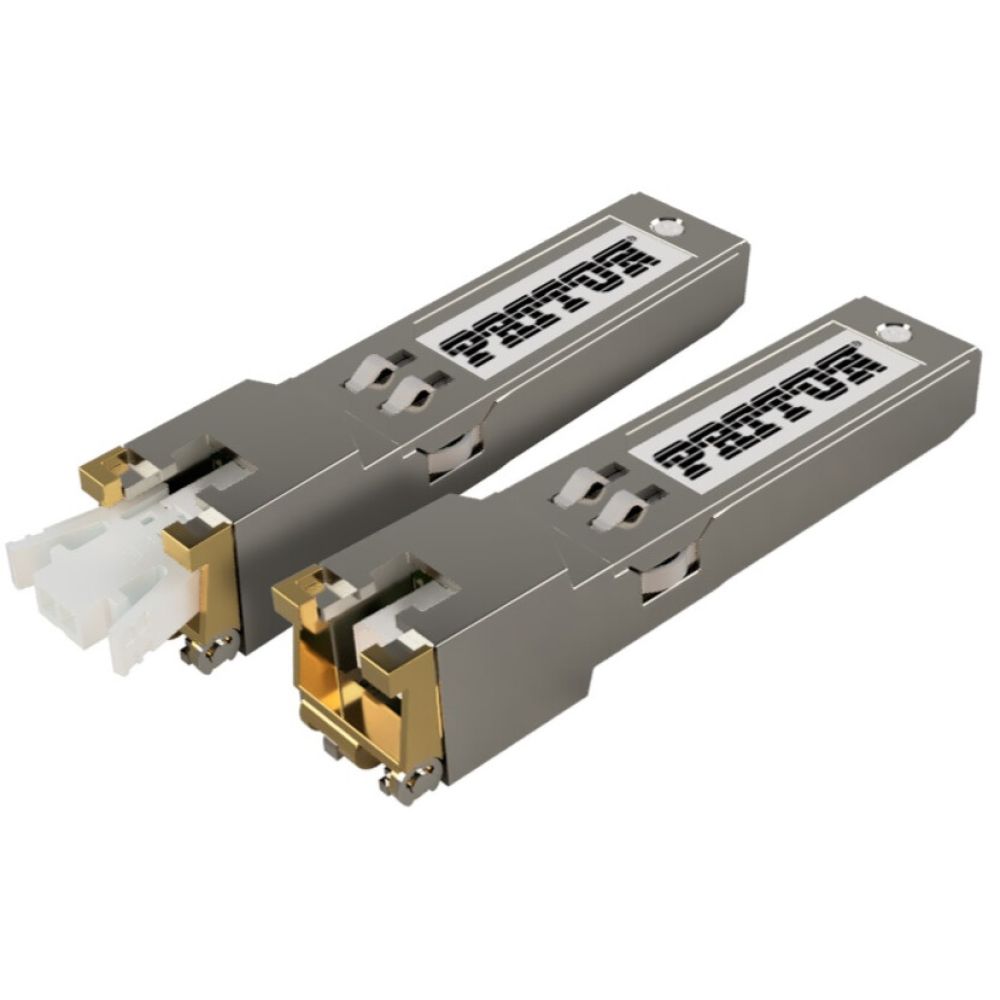

Patton CopperLink CL-SFP/SPE Module

The Patton CopperLink SFP is a low-power, single-pair Ethernet-over-Copper extender. It fits into any router, Ethernet switch, or media converter with SFP slots supporting 100BASE-FX or 1000BASE-X. With a range of up to 3.5 miles (6.2 km) over one wire pair, it delivers full duplex rates from 1.5 to 18 Mbps using proprietary Pulse Amplitude Modulation (PAM) technology for safer, interference-free transmission.

Configurable via Web GUI or CLI (Telnet), it supports both fixed and auto rate modes. The device also offers fast link recovery, link quality monitoring, and options for wire termination including Single Pair Ethernet and Combicon connectors.

Patton CopperLink CL-SFP/SPE Module Features & Specifications:

• SFP Ethernet Extender - Hot-pluggable SFP module Extends 100BASE-FX/1000BASE-X Ethernet over 3.5 miles (18,000 feet, 6.2 Km) using 2-wire twisted-pair.
• Superior Bandwidth - Supports composite wire speeds of 1.5 Mbps to 18 Mbps Bi-directional Data Transmission.
• Isolation & Overvoltage Protection - The copper line interface has 1500V RMS or 2250V DC isolation and its protection meets ITU-T Rec. K.20/K.21.
• SFP Compliant - Fully Complies with SFP MSA Specification.
• and more!
