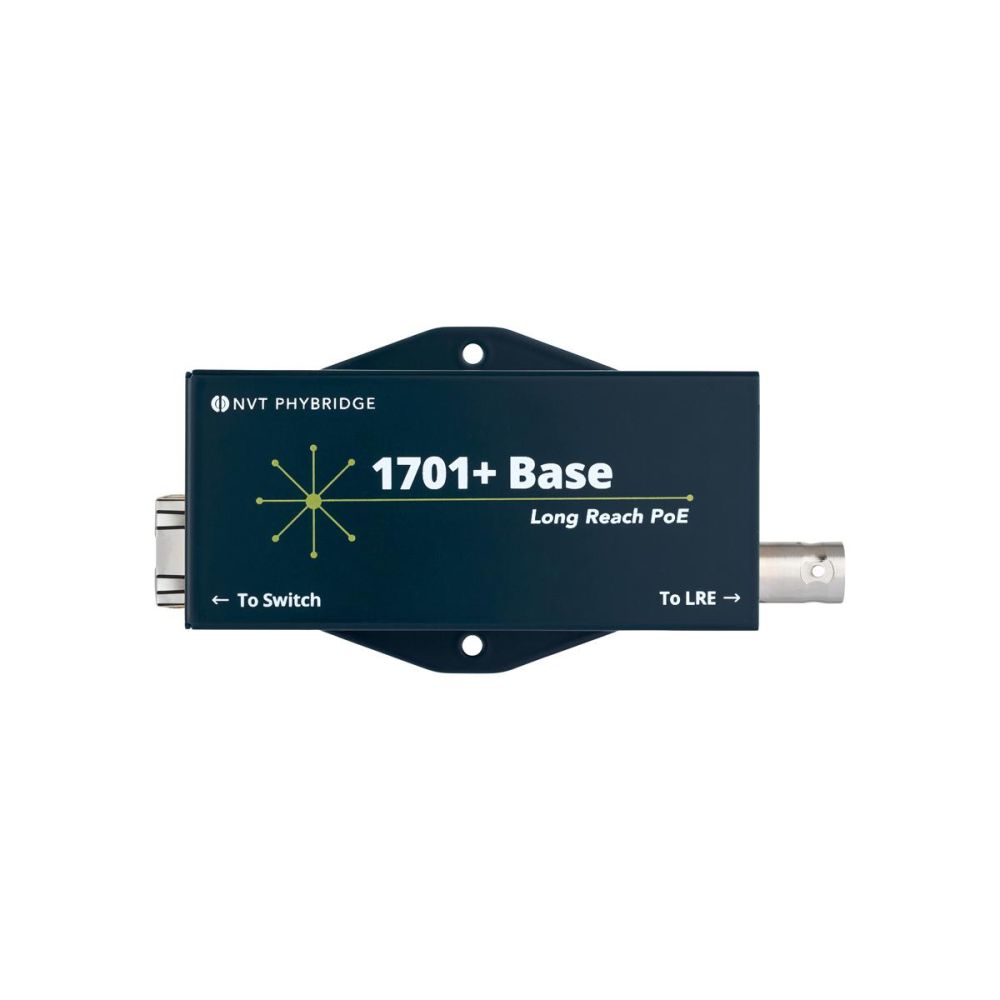

NVT Phybridge 1701+ Poe+ Over Coax Base Extender NV-EC1701PLS-BSE

The NVT Phybridge 1701+ Extender enhances the downlink ports of a standard Ethernet switch by delivering up to 420Mbps and PoE+ over Coax, single pair UTP, or two-wire infrastructures, reaching up to 8,000 feet (2.4 km) on RG6. This extension offers 24 times the reach of standard Ethernet switches, eliminating the costs and disruptions linked to multiple IDF locations. By utilizing the 1701+ Extender solution, users can seamlessly connect IP and IoT devices to new or existing cabling infrastructures, ensuring optimal performance while reducing costs, time, and environmental waste. Additionally, the savings from implementing the 1701+ solution allow system designers to allocate budgets towards higher-quality applications and IEEE 802.3at/af compliant devices, such as IP-enabled phones, cameras, access control systems, speakers, lighting, and more.

NVT Phybridge 1701+ Poe+ Over Coax Base Extender NV-EC1701PLS-BSE Features & Specifications:

• Paired with 1701+ Link Adapter
• Data rate up to 420 Mbps with up to 8,000 ft (2.4km) reach
• Negotiates power with 802.3at/af PoE Switch (802.3at/af max power is 30W)
• 1701+ Base can also be locally powered for non-PoE switch deployments or high-power delivery (100W)
• 10/100/1000 Base-T, Auto-MDIX interface with Ethernet Switch
• Supports up to 4 endpoints in a point to multi-point topology
• LED Indicators (power, link, data)
