Adtran NetVanta 3458 8-port, dual NIM Managed Layer 2 Switch (DISCONTINUED)

Skip to the beginning of the images gallery

The Adtran NetVanta 3458 8-port, dual NIM Managed Layer 2 Switch has been discontinued by the manufacturer. There are no comparable replacements at this time. Please call 1-800-398-8647 or chat with an expert for a recommendation.

Availability: Out of stock

SKU

02-122900

MPN

1200824G1-DIS

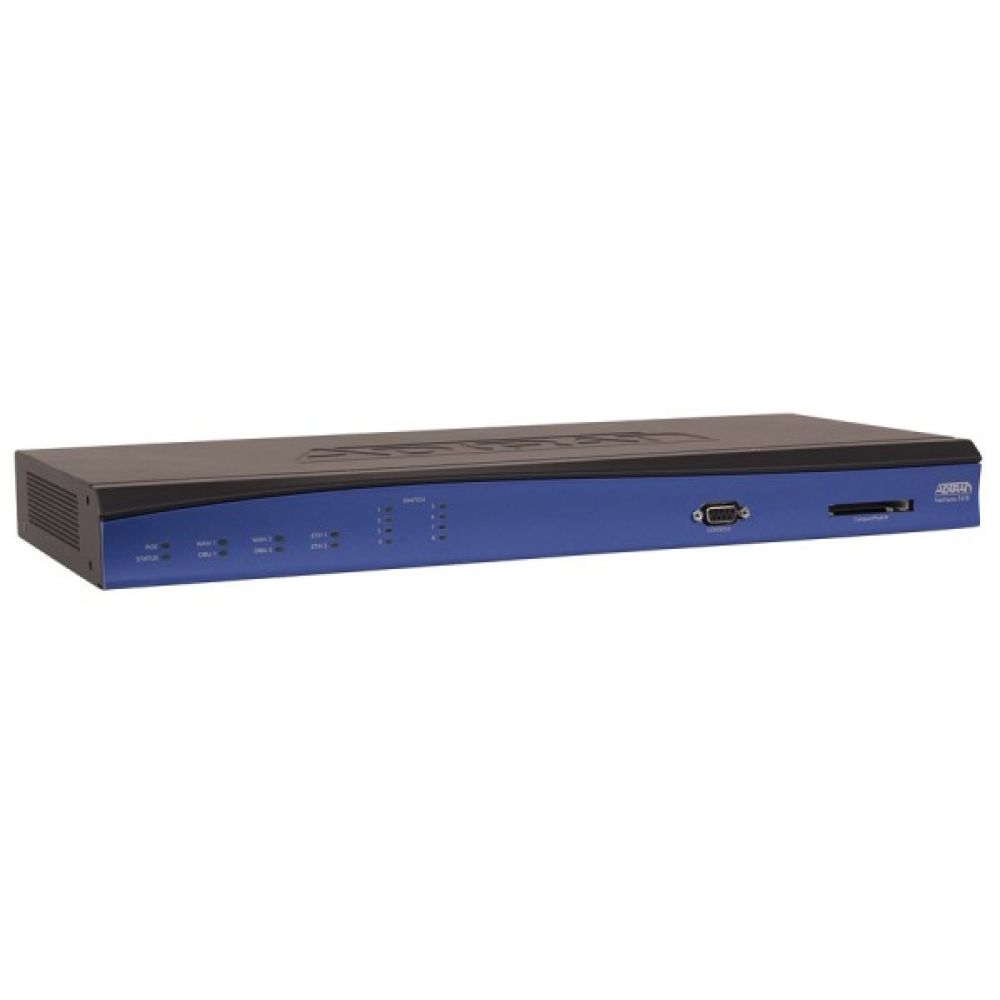

Adtran NetVanta 3458 is a modular access router that includes two (2) network interface slots, two (2) integral 10/100BaseT Ethernet ports, and an integrated eight (8) port fully-managed Layer 2 Ethernet switch with optional Power over Ethernet (PoE) capability. 1U metal chassis with 19" rack mount brackets included.

Details

A Multiservice Access Router that delivers the high-packet throughput required for IP Telephony, corporate connectivity, and Internet access. This performance-enhanced routing platform delivers wire-speed throughput, even with advanced services like QoS, NAT, and Firewall-enabled.

RapidRoute technology for greater performance
Dual Network Interface Module (NIM) slots
Integral eight-port, nonblocking, Ethernet switch
Inherent URL filtering for easy content filtering
CompactFlash slot for auto-provisioning

Features and Benefits

Dual-slot Multiservice access router supporting up to four T1s
RapidRoute technology for greater performance
Integral eight-port non-blocking Ethernet switch
Inherent URL filtering to manage employee Internet access and enforce Internet usage policies
Standards-based routing/switching protocols
CompactFlash slot for backup and restore, and for auto-provisioning
Stateful inspection firewall for network security
Recognizable Command Line Interface (CLI) to reduce learning curve
Intuitive Web-based Graphical User Interface (GUI) with step-by-step setup wizards
Wi-Fi Access Controller for centralized management of NetVanta Wireless Access Points (WAPs)
Industry-leading five-year North American warranty

Technical Specifications

Modular platform supporting an IP access router, Ethernet switch, and firewall
Performance-enhanced platform supporting RapidRoute technology
Dual-slot platform supporting up to four T1s of bandwidth
Dual 10/100Base-T Ethernet ports for LAN segmentation, DMS applications, or broadband backup
Supports all current NIMs and Dial Backup Interface Modules (DIMs)
Full-featured, fully-managed eight-port 10/100Base-T switch
Integral stateful inspection firewall protects against Denial of Service (DoS) attempts
Standards-based eBGP/iBGP, OSPF, RIP, static routing, and bridging protocols
Network Address Translation (NAT/NAPT), 1:1 NAT Port Translation, and NAT Traversal v2
NAT-compliant SIP ALG
DHCP client, server, and relay
Inherent URL filtering or through Websense® integration
TACACS+ and RADIUS
Quality of Service with DiffServ marking, Low Latency Queuing, Weighted Fair Queuing (WFQ), Class-based WFQ, and Weighted Round Robin
Frame Relay and PPP Fragmentation
802.1Q VLAN trunking/inter-VLAN routing and bridging
Advanced features include:
Policy-based routing
Layer 3 backup
Demand routing
PIM Sparse Mode
VRRP
Multi-VRF
802.1d/802.1w Spanning Tree/Rapid Spanning Tree support
Storm Control, Link Aggregation (802.3ad), and Port Mirroring
Port authentication (802.1x) and MAC-based port security
Wi-Fi Access Controller for centralized management of NetVanta Wireless Access Points (WAPs)
CompactFlash slot for downloading configuration files and new firmware
