Mobotix S74 High End IP Camera

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Join the VoIP Supply Partner Program Banner - All Products

From $1,000.00

To $82,725.00

In stock

SKU

02-130243

MPN

S74

The Mobotix S74 High End IP Camera is an advanced security camera that offers the flexibility no other camera has offered before. The S74 camera allows users to connect up to (4) modules of their liking to the camera base providing an array of possibilities for camera angles, audio and night and day options. Two separate areas can be surveilled with only one camera.

Customize Mobotix S74 High End IP Camera

Mobotix Mx-S74A

1 x Mobotix Body for 4 Sensors and Functional Modules Mx-S74A + $877.00

Mobotix Mx-F-S7A-RJ45

1 x Mobotix S74 Network slide in board with RJ45 socket Mx-F-S7A-RJ45 + $123.00

Mobotix Mx-F-S7A-INT01

Quantity

Mobotix Thermal Sensor Modules

* Required Fields

Your Customization

Mobotix S74 High End IP Camera

In stock

Qty:

$1,000.00

Summary

Details

Mobotix S74 High End IP Camera

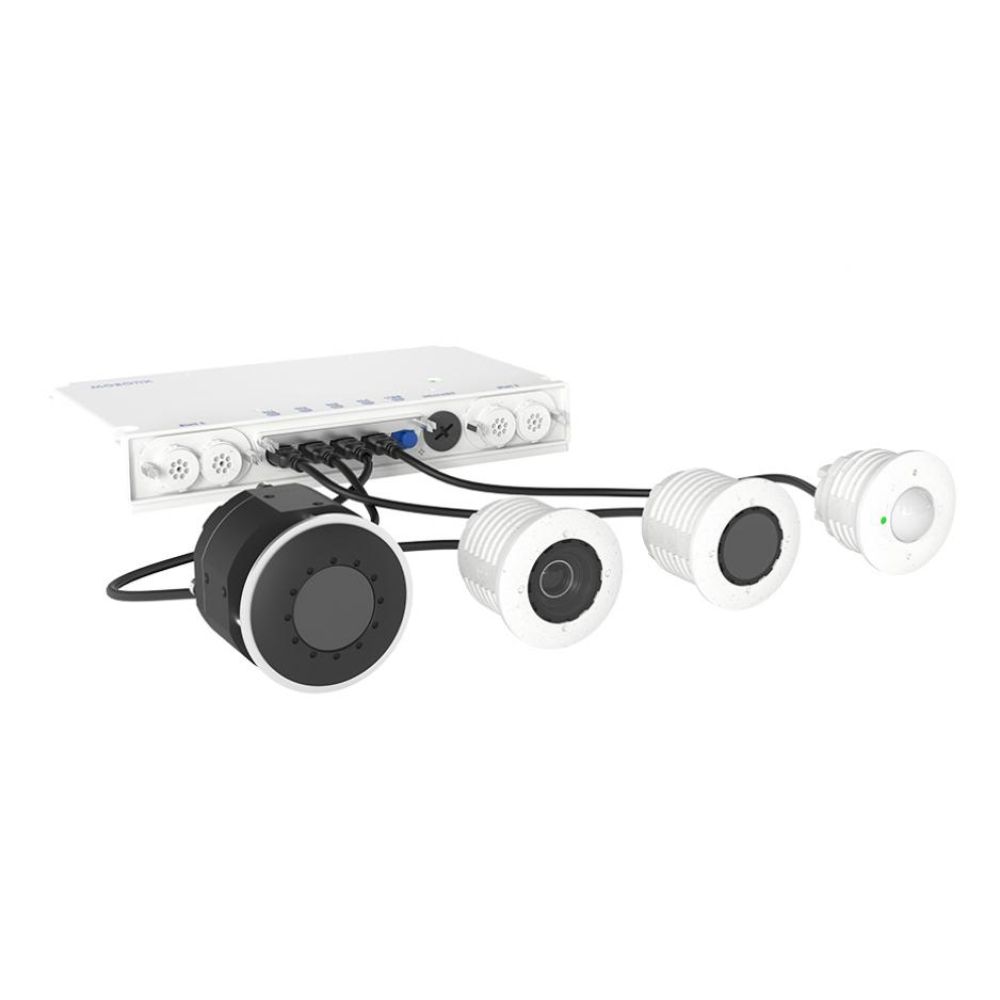

The Mobotix S74 Camera can support up to four sensor modules and function modules that are easy to assemble. Users can choose two optical modules and two function modules simultaneously. In addition if audio is needed, an additional audio board can be used (sold separately).

This is a robust, weatherproof device with the ability to withstand extreme temperatures as well as the option to use 50-mK thermal sensor modules that are easy to retrofit. The S74 can also be used indoors.

The S74 can be installed behind a wall, equipment or ceiling covering where only the sensors are visible. Mounts are available for the S74 in dome-style mounts (mono ount) or two sensors together (dual mount). There is also a manual 3 axes pan and tilt (PT) mount for wall or ceiling installation. All mounts come in the color white.

Mobotix S74 High End IP Camera Features and Specifications:

Up to 4K UHD resolution
Unsurpassed image quality with minimal light: new ultra-low-light 4MP day and night sensor modules with up to four times greater light sensitivity than the 4K ultra-HD sensor modules
Max. image size 3840x2160 pixels, 16:9
Enhanced WDR for all image sensor modules (UHD and ultra-low light)
Max.frame rate (H.264): 30fp@4K
Max.frame rate (Mxpeg+): 20fps@4K
Ambient temperature -40 to 65 degrees celcius )-40 to 149 degrees Farenheit)
Protection classes IP66 and IK10
MTBF (Mean Time Between Failure) >9 years
Three-year to eight year warranty (subject to terms)
ONVIF profile S and T
H.264 triple streaming and H.265
MxPEG + (for license-free use of the S74 in MxMC from version 2.2)
MJPEG
Max. power consumption: 25W
Power supply via PoE Class 4 network cable (IEEE 802.3.at)
Expandable Internal DVR:8-GB microSD
Made in Germany
