Mobotix Media converter set Ethernet PoE+ Twisted-Pair Mx-A-ETP1A-2601-SET

Mobotix Media converter set Ethernet PoE+ Twisted-Pair Mx-A-ETP1A-2601-SET

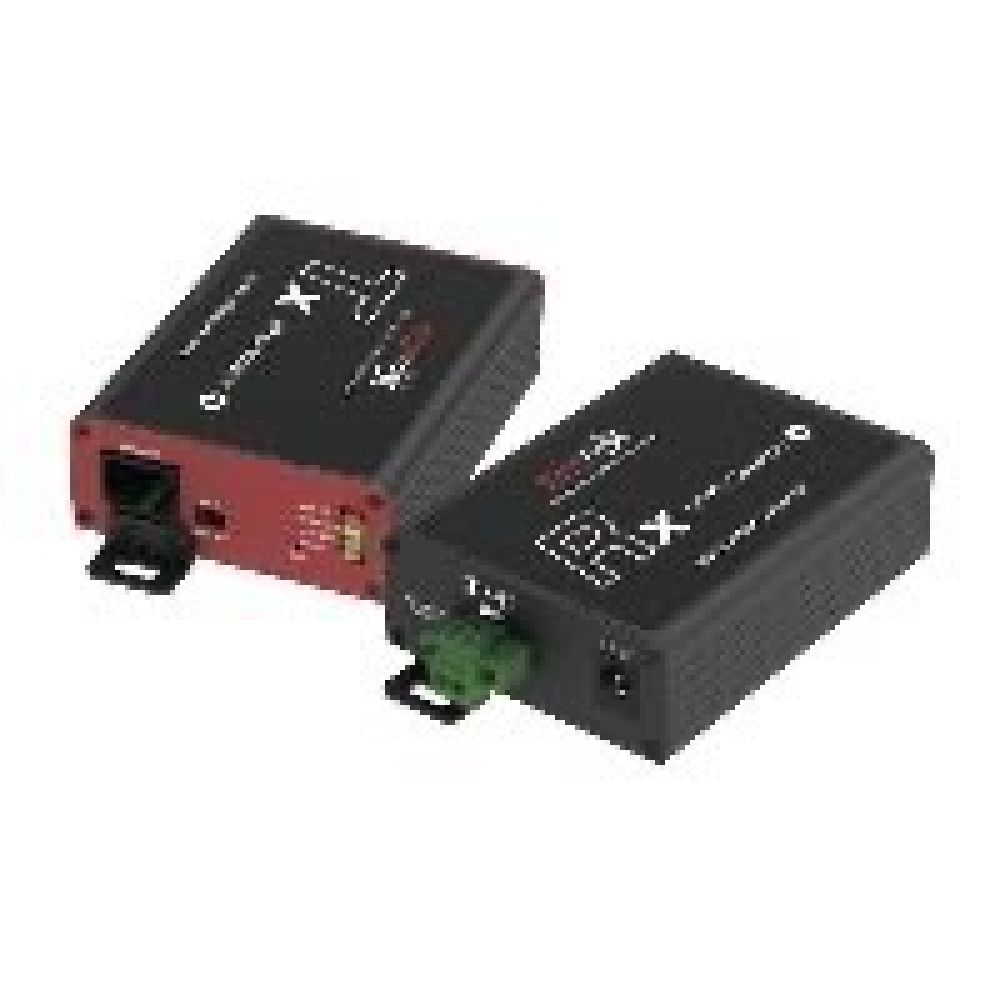

The Mobotix Media Converter Set, with the model designation Mx-A-ETP1A-2601-SET, represents a sophisticated and efficient networking solution that addresses the demands of modern data and communication networks, particularly in scenarios where Ethernet connectivity and Power over Ethernet (PoE+) are pivotal. Comprising a pair of intelligently designed devices, this set empowers seamless signal conversion and power distribution over twisted-pair cabling, thereby facilitating enhanced network performance, simplified installations, and optimized resource allocation.

Mobotix Media converter set Ethernet PoE+ Twisted-Pair Mx-A-ETP1A-2601-SET Key Features

• Transmission of Ethernet and PoE+ power supply via two-wire line according to IEEE1901
• Simple connection of 10/100 Mbps Ethernet end devices
• Max. 95 Mbps transmission bandwidth, range up to 600m for data / 300m for PoE depending on the quality of the Twisted-Pair link
• 128 bit AES network data encryption
• Power supply 2-wire transmitter (Tx) and receiver (Rx) as well as end device via PoE+ network switch or external power supply 56VDC / 1.2A (not included!)
• Connected end devices are supplied via PoE switch IEEE802.3af(PoE), IEEE802.3at (PoE+), UPoE up to 60W (requires ext. power supply unit).
• Status LEDs (data, power supply, data link, PoE)
• Integrated Overvoltage protection (IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us))
• Power Supply: TX: T-Linx or DC12V~57V, RX: PoE Switch or DC48V~57V
• Operational temperature: -20 to 60 ¡C
• Warranty: 2 years
