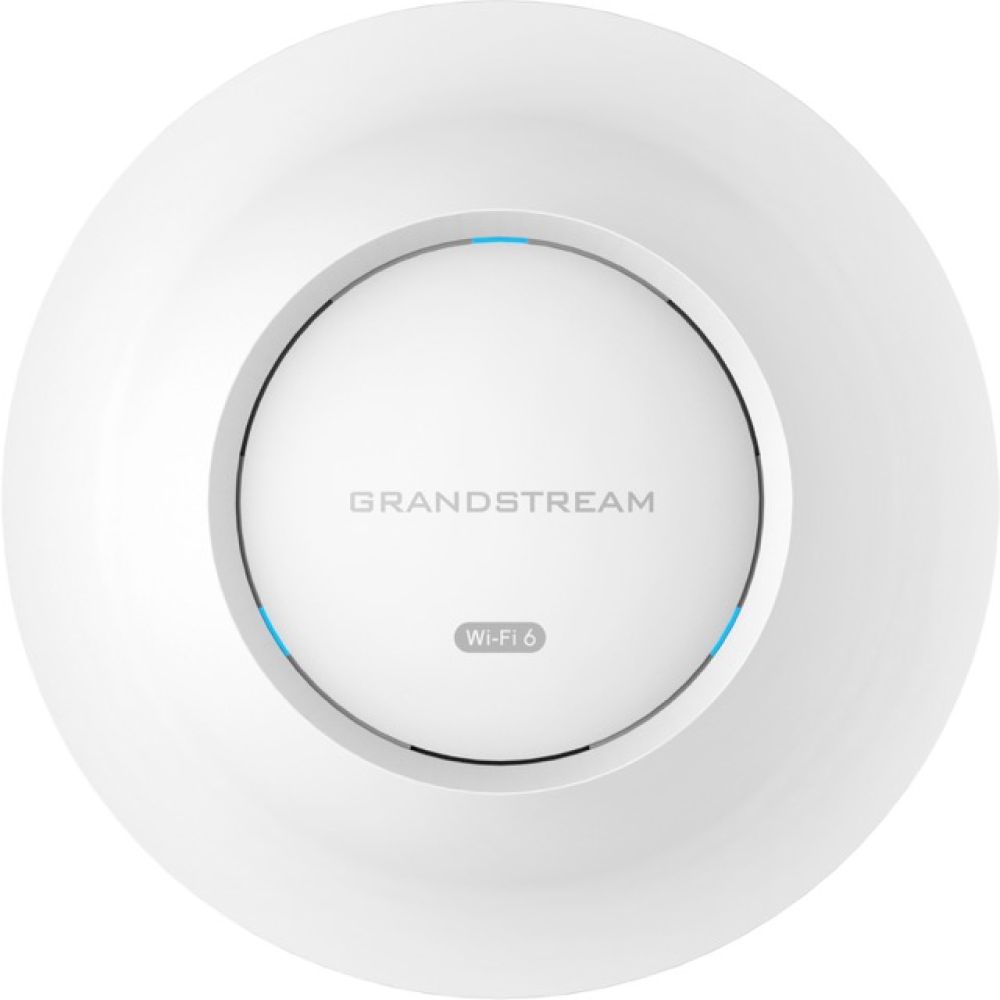

Grandstream GWN7662 Indoor Wi-Fi 6 Access Point

The Grandstream GWN7662 is an 802.11ax Wi-Fi 6 access point that's perfect for small-to-medium-sized businesses, home offices, retail shops, restaurants, hospitality, education, and more. It offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band. It has a sophisticated antenna design that ensures maximum network throughput and expanded Wi-Fi coverage range. The GWN7662 supports Wi-Fi 6 technology, which is perfect for the modern generation of dense environments where many users and devices require consistent and reliable Wi-Fi connections at higher speeds.

Grandstream GWN7662 Indoor Wi-Fi 6 Access Point Features & Specifications:

Wi-Fi Standards:

• IEEE 802.11 a/b/g/n/ac(Wave-2)/ax
• Antennas: 6 single frequency internal antennas, 2.4GHz 3.65dBi, 5GHz 5.26dBi

Wi-Fi Data Rates:

5G:

• IEEE802.11ax:8.6Mbps to 4804Mbps
• IEEE 802.11ac: 6.5 Mbps to 3464 Mbps
• IEEE 802.11n: 6.5Mbps to 600Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

• IEEE 802.11ax:8.6Mbps to 573.5Mbps
• IEEE 802.11n: 6.5Mbps to 300Mbps
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio
interference in the operating environment and mix of devices in the network

Frequency Bands:

• 2.4GHz Radio: 2412 - 2484 MHz(WIFI)
• 5GHz Radio: 5180 - 5825 MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth:

• 2.4G: 20 and 40 MHz
• 5G: 20, 40 , 80 and 160MHz

Wi-Fi and System Security

• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device.

MIMO

• 2×2:2 2.4GHz (MU-MIMO)
• 4×4:4 5GHz (MU-MIMO)
