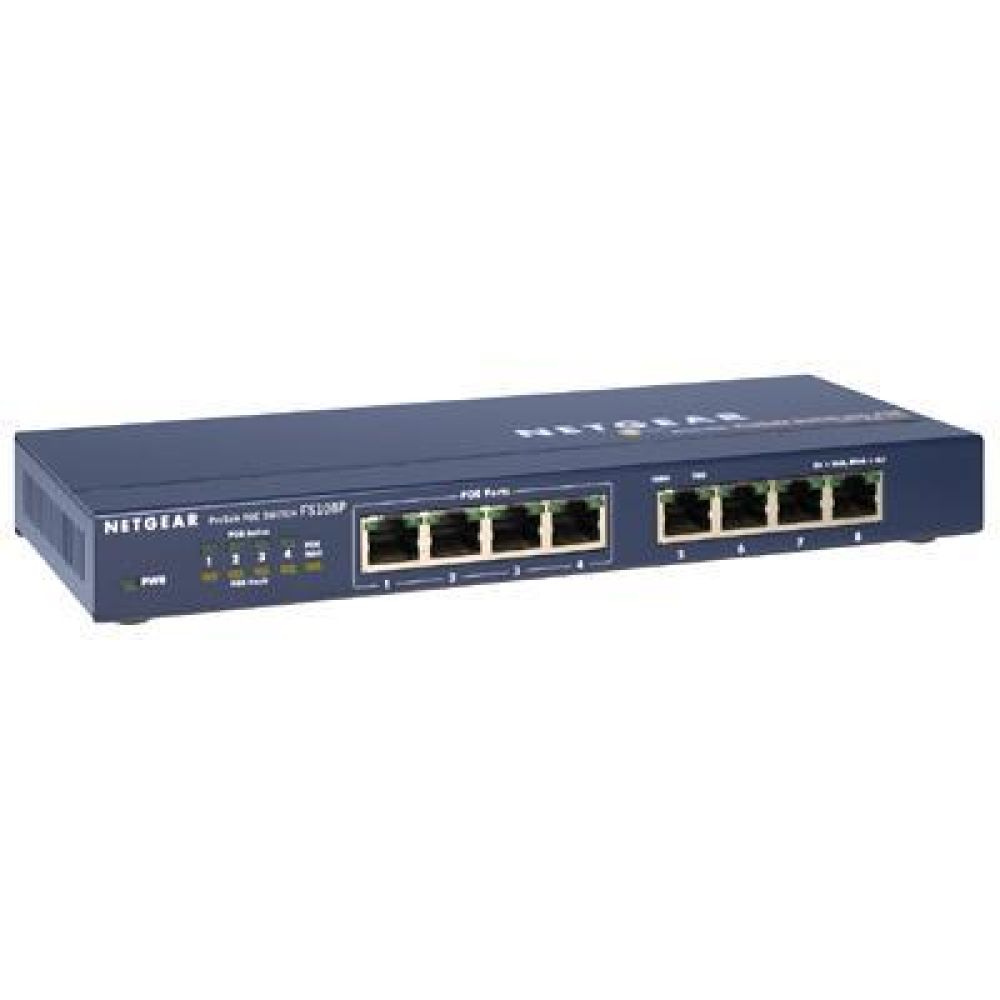

Netgear FS108P ProSafe 8 Port 10/100 Unmanaged Switch with 4-Port PoE (Discontinued)

Netgear FS108P ProSafe 8-Port PoE 10/100 Switch

The Netgear ProSafe FS108P is an 8-port Fast Ethernet Switch that supports Power over Ethernet over four of its ports. The FS108P has an advanced algorithm that distributes power effectively to end devices so that you don't have to worry about damaging proprietary PoE or non-Poe equipment.

Netgear FS108P ProSafe 8 Port 10/100 Switch with 4-Port PoE

The Netgear ProSafe FS108P is a reliable and cost effective Plug and Play solution that offers power and data from a single device over a single Cat-5 cable. With powerlink technology, this switch automatically meets PoE requirements, speed, duplex, and cable type. The FS108P can be installed on a ceiling or high on a wall since they do not need to be connected to a power outlet, allowing for flexibility and reduced installation costs. This compact switch is ideal for small businesses that need an affordable PoE deployment for wireless access points.

Netgear FS108P Features and Specifications

Network Ports

• 8 auto speed-sensing 10/100 RJ-45 ports

Network Protocol and Standards

• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x Flow Control
• IEEE 802.3af DTE Power via MDI

Performance Specifications

• Forwarding modes: Store-and-forward
• Bandwidth: 1.6 Gbps
• Network latency: Less than 20 µs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
• Buffer memory: 96 KB embedded memory per unit
• Address database size:1,000 media access control (MAC) addresses per system
• Addressing: 48-bit MAC address
• Mean Time Between Failure (MTBF): 190,000 hours (~ 21 years)
• Acoustic Noise: 0 dB

Status LEDs

• System: Power, PoE Maximum Power
• Per Port: Link, Activity, Speed, PoE Active, PoE Fault

Power Supply

• Total Power Consumption: 44 W maximum
• PoE Watt budget: 32W
• 802.3af Power Consumption: 32 W maximum (Ports 1 – 4)
• 48VDC, 0.8A power output; plug is localized to country of sale

Electromagnetic Immunity

• EN 55024

Safety

• CE mark, commercial
• CE/LVD EN60950

Warranty

• NETGEAR Lifetime Warranty†
• 2 years for power supply

Package Contents

• ProSafe 8 Port 10/100 Switch with Power over Ethernet (FS108P)
• AC Adapter
• Wall-mount kit
• Installation guide
• Warranty/Support Information card
