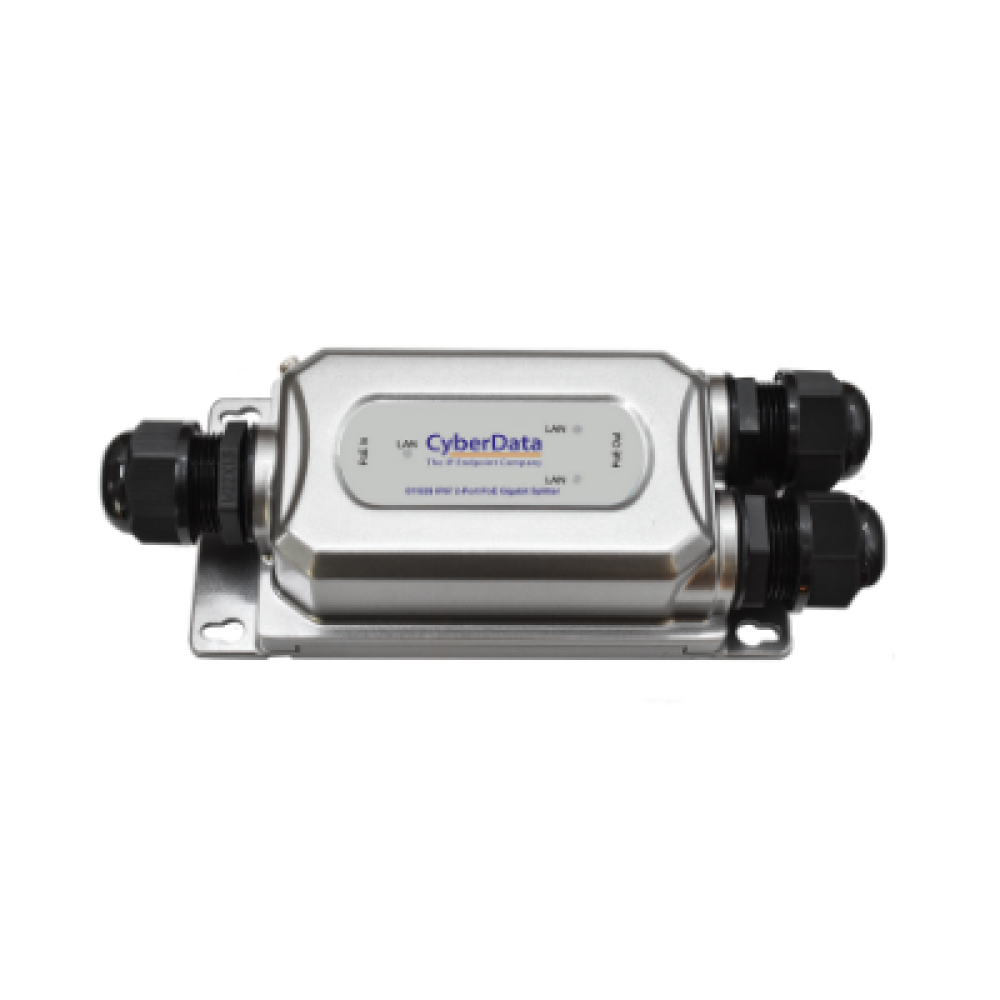

CyberData 011539 2-Port IP67 802.3bt to 802.3at Gigabit Switch

CyberData 011539 2-Port IP67 802.3bt to 802.3at Gigabit Switch Overview

The CyberData industrial IP67 Gigabit switch has two 802.3at (29.5W) outputs and a PoE 802.3bt Type 4 (90W) signal. For devices in an outdoor or unsafe environment, this product can be used to cut a single PoE network cable into two different 802.3at PoE drops. The platform will enable data transfer and PoE power supply up to 100m from the switch output, making it ideal for massive installations.

CyberData 011539 2-Port IP67 802.3bt to 802.3at Gigabit Switch Features

• Fully compliant to IEEE 802.3af/at/bt standard
• 1 Power Device (PD) input port 802.3bt Type 4 and Type 3, or 802.3at
• 2 Power Source Equipment (PSE) output ports 802.3at
• Power and data carried over the same cable up to 100m from PSE
• All ports are 10/100/1000Mbps (10BASE-T,100BASE-TX,1000BASE-T) auto sensing based upon the port's individual connection
• Each port has auto MDI-X
• 802.11q VLAN tagging
• Automatic address learning, address aging and address migration
• Supports 9216-byte jumbo frame length
• Link/Status LEDs
