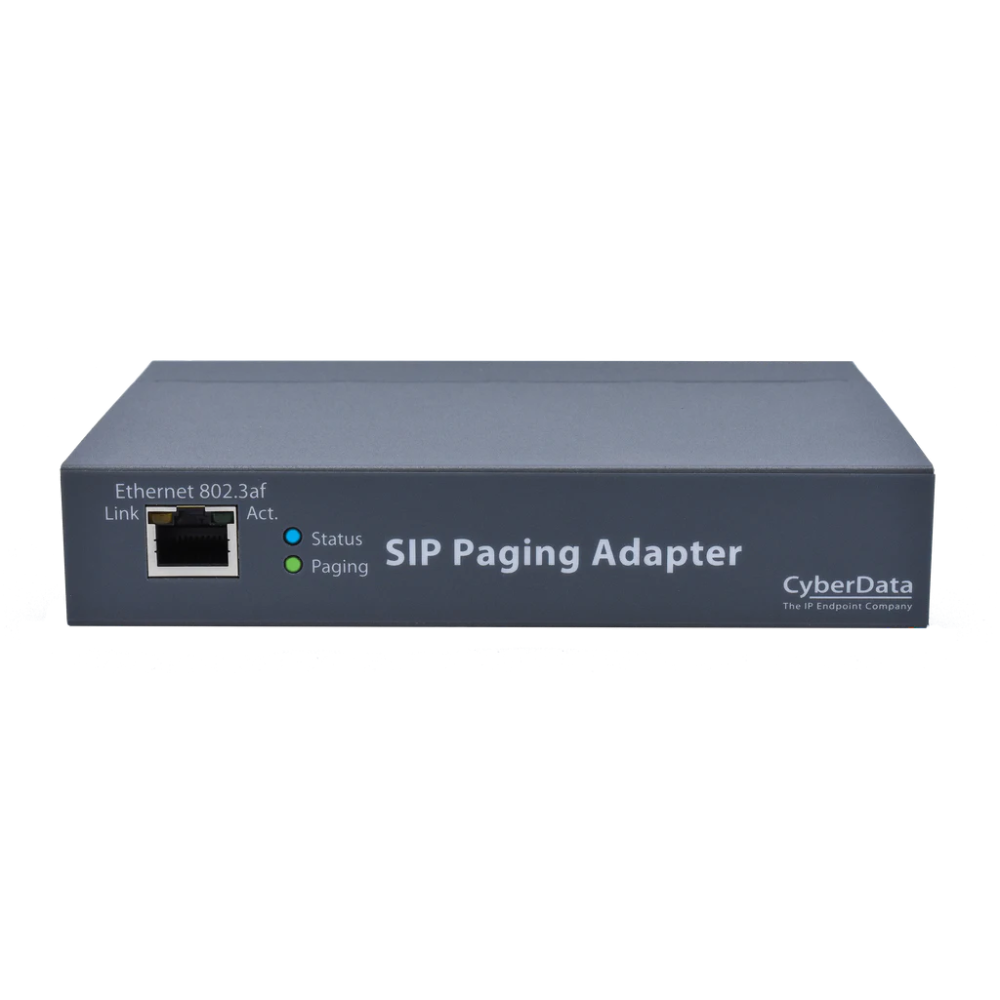

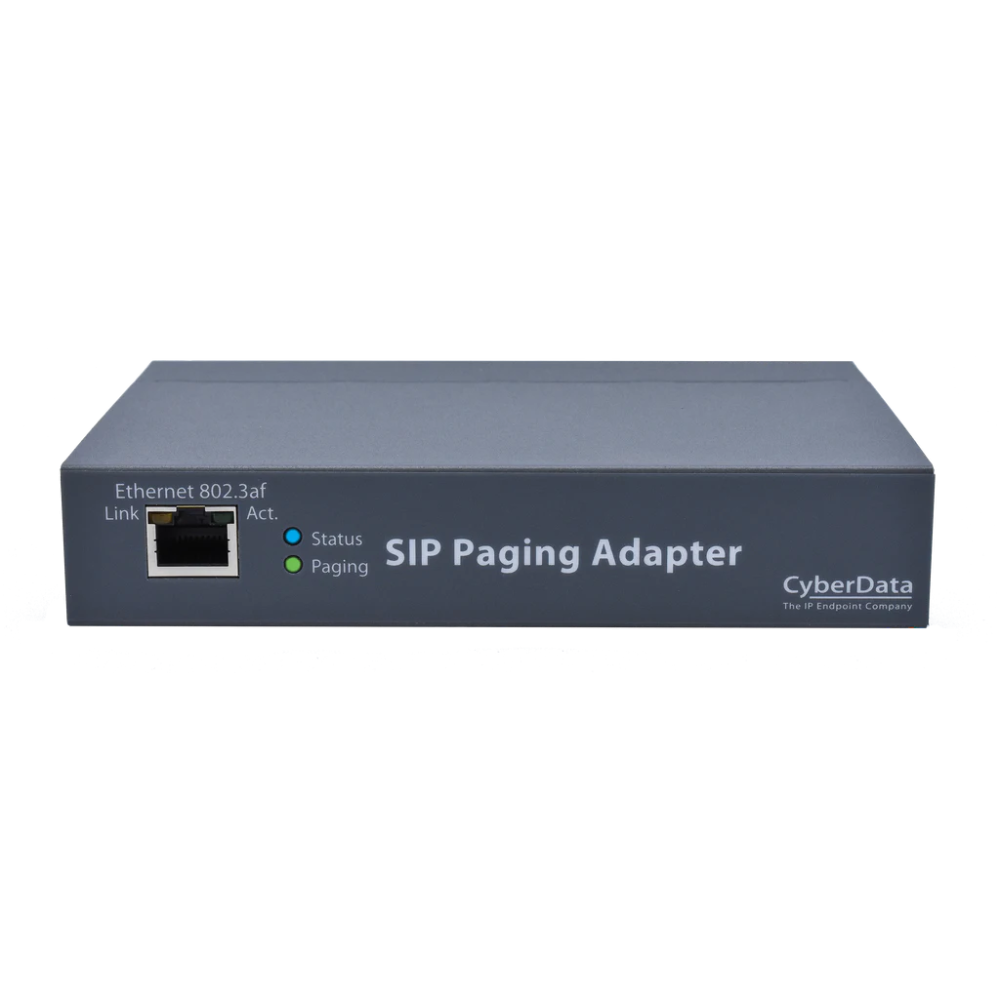

CyberData 011233 SIP Paging Adapter

CyberData 011233 SIP Paging Adapter

The CyberData 011233 SIP Paging Adapter is a VoIP endpoint that interfaces analog IP paging systems with SIP and Multicast-based audio sources.

CyberData 011233 SIP Paging Adapter Overview

The CyberData SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions. SIP extension one passes audio through to the analog output spoken from the caller's handset. When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group.

The SPA supports up to 9 user-uploadable messages that can be played by a DTMF command. The SPA supports a line-In input for playing MOH. During a page or night ring, this input is muted with its output restored once the page has stopped.

Messages can be played either SIP to analogue, multicast to analogue, or HTTP Command Interface.

CyberData 011233 SIP Paging Adapter Features:

• Two SIP extensions
• HTTP Command Interface
• HTTP Web Interface and setup
• 9 user-uploadable page messages
• 10 channel prioritized Multicast ports
• Built-in diagnostics
• 10k Ohm input for MOH
• 600 Ohm Balanced audio out
• Unbalanced Line-Out
• DTMF and programmatic controlled Relay
• Remote amp fault sensor
• DTMF pass-through
• Delayed page support
• Cisco SRST
• 10/100 802.3af PoE
