ClearOne MaxAttach Wireless (DISCONTINUED)

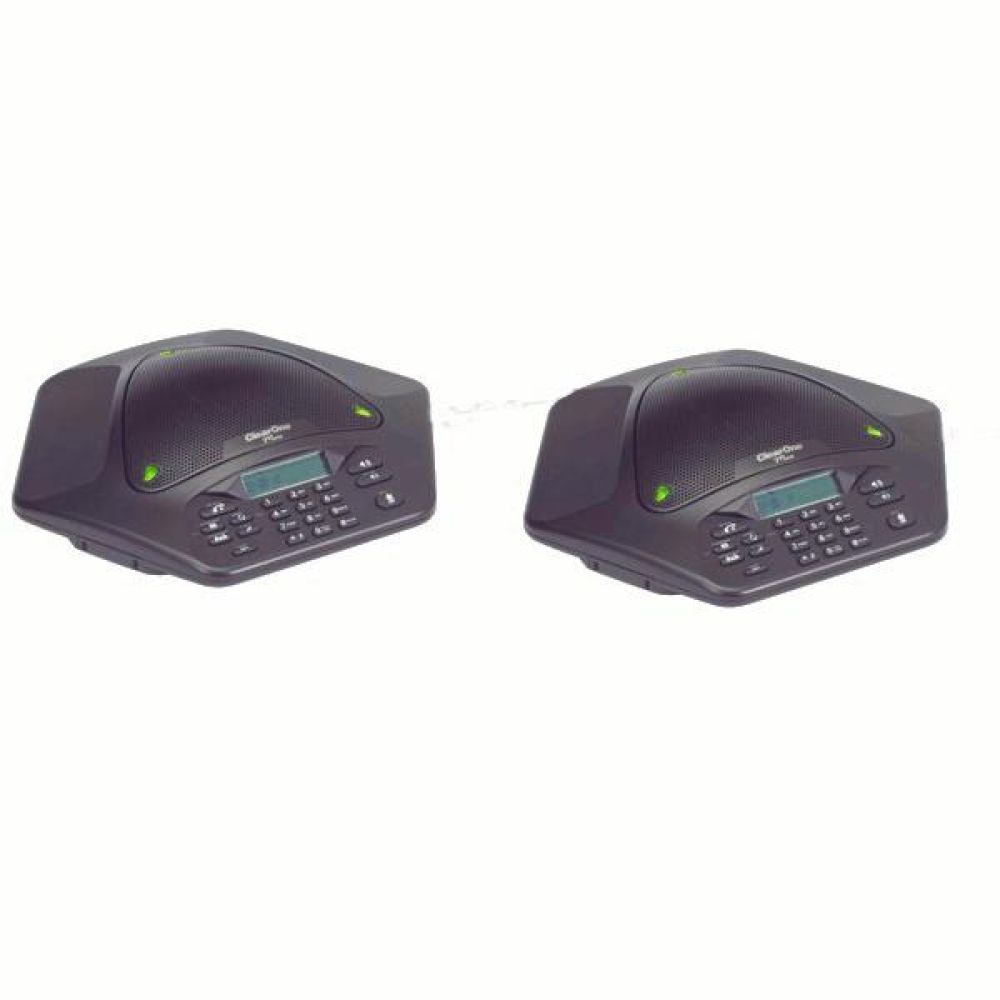

ClearOne MaxAttach Wireless

The MAXAttach Wireless is the industry's first dual-unit wireless conference phone. It features the same audio technologies as ClearOnes award winning MAX Wireless to deliver crystal clear sound, but has two wireless phones instead of one. This provides double the number of speakers and microphones for expanded coverage and enhanced communication in larger rooms. Each phone has its own controls so participants, regardless of where they are seated in the room, can conveniently dial a call, mute microphones or adjust volume settings. And because this ClearOne model is wireless, it can be easily picked up and moved to wherever a conference call needs to be held.

ClearOne MaxAttach Wireless Product Overview

• Easy setup and operation just plug the base station into a power outlet and analog telephone jack
• 150-foot signal range use in multiple rooms without moving the base station
• 12-hour battery life conduct lengthy conferences without recharging
• Automatic Level Control automatically adjusts microphone volume levels based on how loudly participants in the local room are talking to improve voice quality for far-end participants
• Automatic Gain Control automatically adjusts loudspeaker volume based on the incoming audio signal from the far end to provide clear, intelligible audio in the local room 64-bit encrypted communication ensures secure conferencing

user-selectable feature

MaxAttach Wireless Specifications

Echo Cancellation Tail time: 60 ms x 3

Noise Cancellation Dynamic noise cancellation

Telephone Connection Analog PBX or PSTN line RJ-11C, -12 dBm nominal

Radio Frequency 2.4 GHz WDCT

Keypad Alphanumeric standard keypad

Loudspeaker Volume: 90d Bspl A weighted @ 1 ft Bandwidth: 200 Hz3.3 kHz

Record Output Connector: 2.5 mm mono audio jack Impedance: <1000 ohms Bandwidth: 200Hz3.3kHz Dynamic range: 60dB THD <.01 percent

Certifications FCC part 15/ICES-003 Class A FCC part 15 Subpart C/RSS-210 FCC part 68/IC CS-03 CE UL Certified

Power Phone unit: Custom battery pack with nickel metal hydride batteries, 7.2 V 2200 mAh 12 hours continuous talk time typical 36 hours standby Base unit: Auto-adjusting power module; 100-240 VAC; 50/60Hz

Wireless Range Standard WDCT units: 150 ft 45 m EU WDCT unit: 50 ft 15 m Note: these ranges depend on environmental factors and may vary. The EU unit has a shorter range due to regulatory restrictions on power output in the 2.4 GHz frequency band in the EU.

MAXAttach Wireless Includes in the box:

• Wireless phone units 2
• Base unit 1
• Battery packs 2
• Power supply/chargers 2
• Power supply retainers 2
• Telephone cable
• Documentation CD
• Quick start guide
