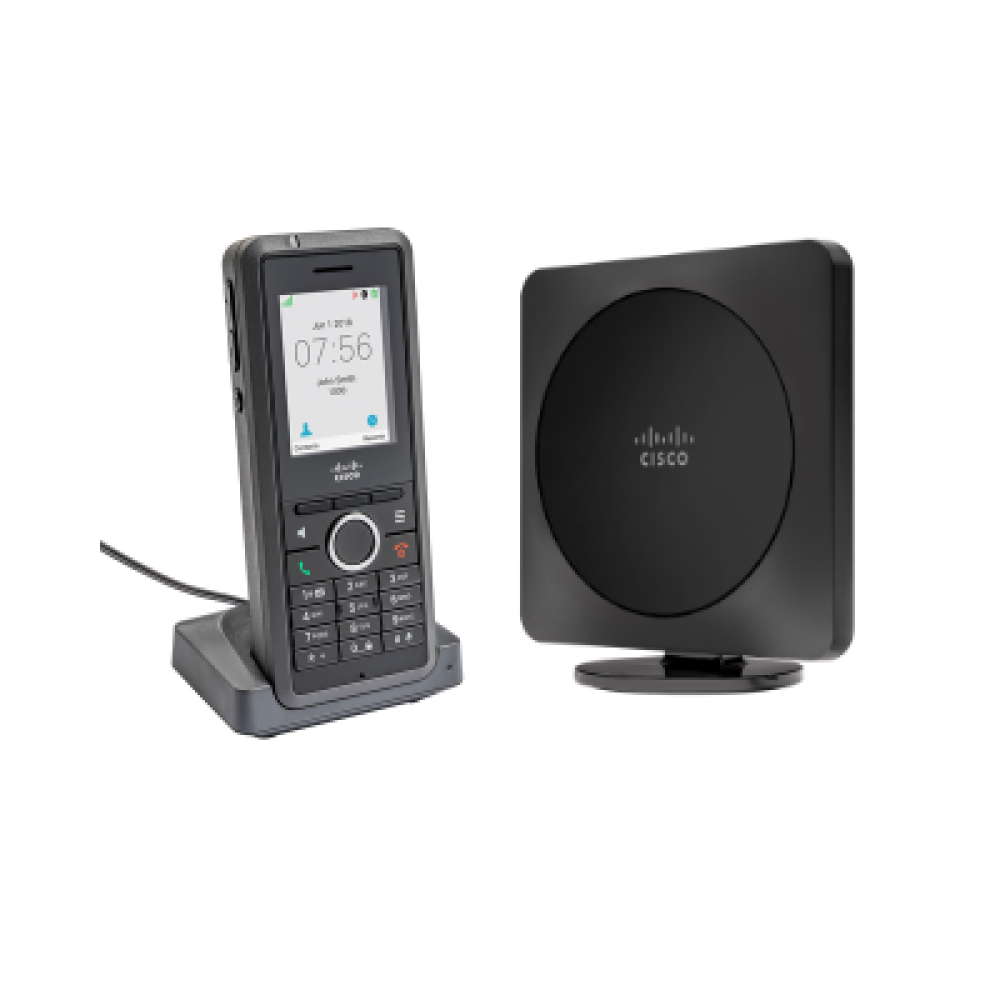

Cisco 6823 MPP 3PCC IP DECT Bundle Handset and Base CP-6823-3PC-BUN-NA

Cisco 6823 3PCC IP DECT Bundle Handset and Base CP-6823-3PC-BUN-NA Overview

Cisco 6823 IP DECT Handset Overview

The Cisco 6823 Handset is compatible with the Cisco IP DECT DBS-110 Single-Cell Base Station, Cisco IP DECT DBS-210 Multi-Cell Base Station, and Cisco IP DECT Phone RPT-110 Repeater. The Cisco IP DECT 6823 provides a large number of phone numbers and handsets in a system that can easily scale from a small business to a large enterprise by adding more base stations and repeaters to the network. The Cisco 6823 offers a sleek, ergonomic design that hooks to your belt or fits into your pocket for hands-free use. The 128 by 160 pixel graphical display provides an interactive user experience, allowing calls to be answered quickly and options like transfer, conference, and hold to be easily accessed.

Cisco 6823 IP DECT Handset Features

• 1.7 in. (4.3 cm) 128 x 160 pixels, 64K TFT display
• 3.5 mm wired headset, iPhone compliant
• The handset, monitor speaker, and ringer all have a volume-control toggle for quick decibel adjustments
• full-duplex speakerphone
• charging cradle holds the phone in a single position
• 28 total keys
• Cradle Charging Time: 6 hours
• Talk time: 17 hours (NB), 12 hours (WB)
• 2 lines (SIP registrations)
• HD audio speakerphone
• CAT-iq 2.1 security support

Cisco 110 DECT Single-Cell Base Station Overview

The Cisco 110 DECT Base Station can support up to 20 SIP registrations per unit and up to 2 base stations and 12 repeaters per system. At its maximum size, a Single Cell system supports 20 concurrent narrowband or 8 concurrent wideband calls.

Cisco 110 DECT Single-Cell Base Station Features

• Up to 20 SIP registrations
• Up to 10 Concurrent Calls
• Up to 6 Repeaters
• Codecs: G.711 (A-law and mu-law), G.722.2, G.726, G.729 (a and ab)
• Internal Single Port - 10/100 BASE-T IEEE 802.3
• Power over Ethernet (PoE) - minimum IEEE 802.3: Power class 2 (3.84 – 6.49W)
• Call history (missed, placed, and received), up to 50 entries
• Auto-provision via TFTP, HTTP, or HTTPs for mass deployment
