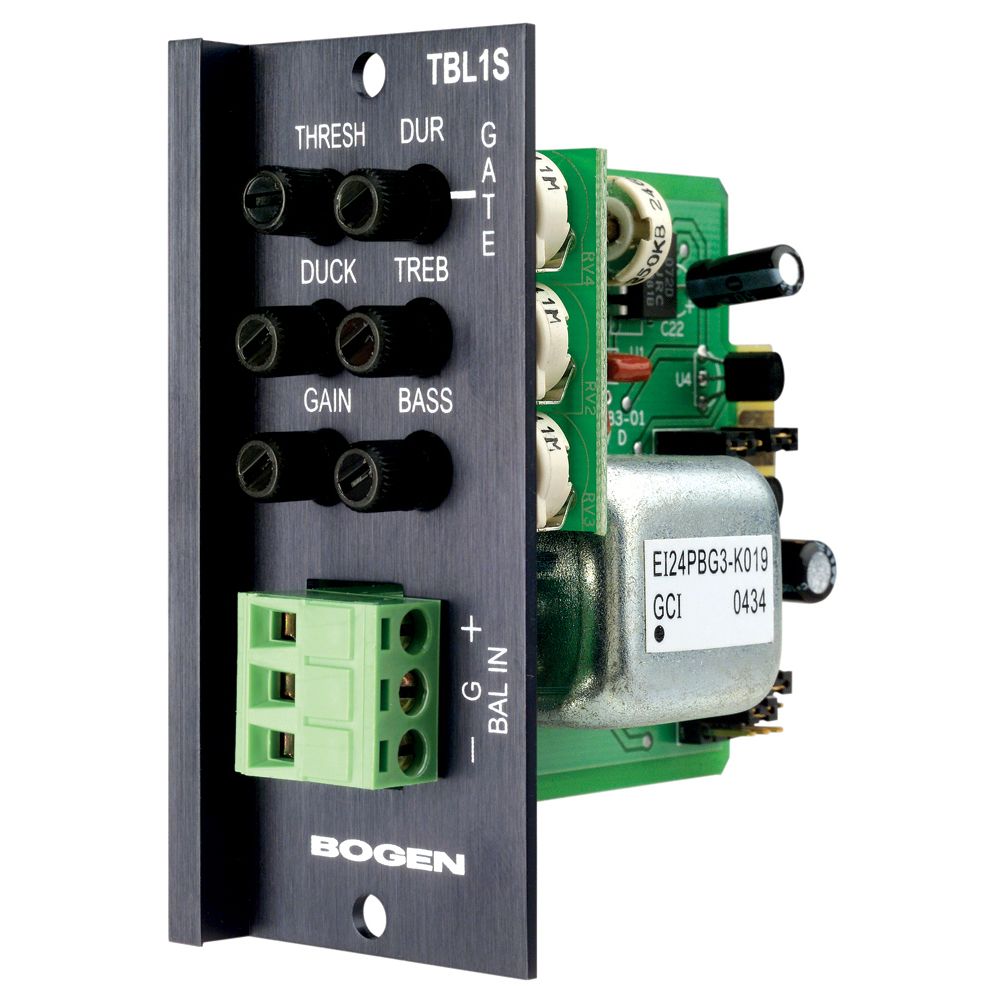

Bogen Communications Transformer Balanced Line Advanced Input Module TBL1S

The TBL1S input module is a transformer-isolated, balanced line-level input with a pluggable 3-pin screw terminal connector. It offers jumper-selectable input impedance of 600 ohms or 10k ohms and features gain/trim control ranging from -11 dB to +19 dB. This module supports four priority levels, mute functionality, and ducking control for signal attenuation. It also includes a VOX/gating circuit with adjustable threshold and duration, and outputs can be assigned to one or both mixing buses for flexible audio routing.

Bogen Communications Transformer Balanced Line Advanced Input Module TBL1S Features & Specifications:

• Transformer-isolated line-level input
• Gain/Trim control
• Bass & Treble controls
• Gating w/Threshold & Duration
• Mute send & receive
• Variable ducking level when muted/gated
• Fade back from mute/gate
• 4 Priority levels
• Bus assignable
• Pluggable screw terminal connections
