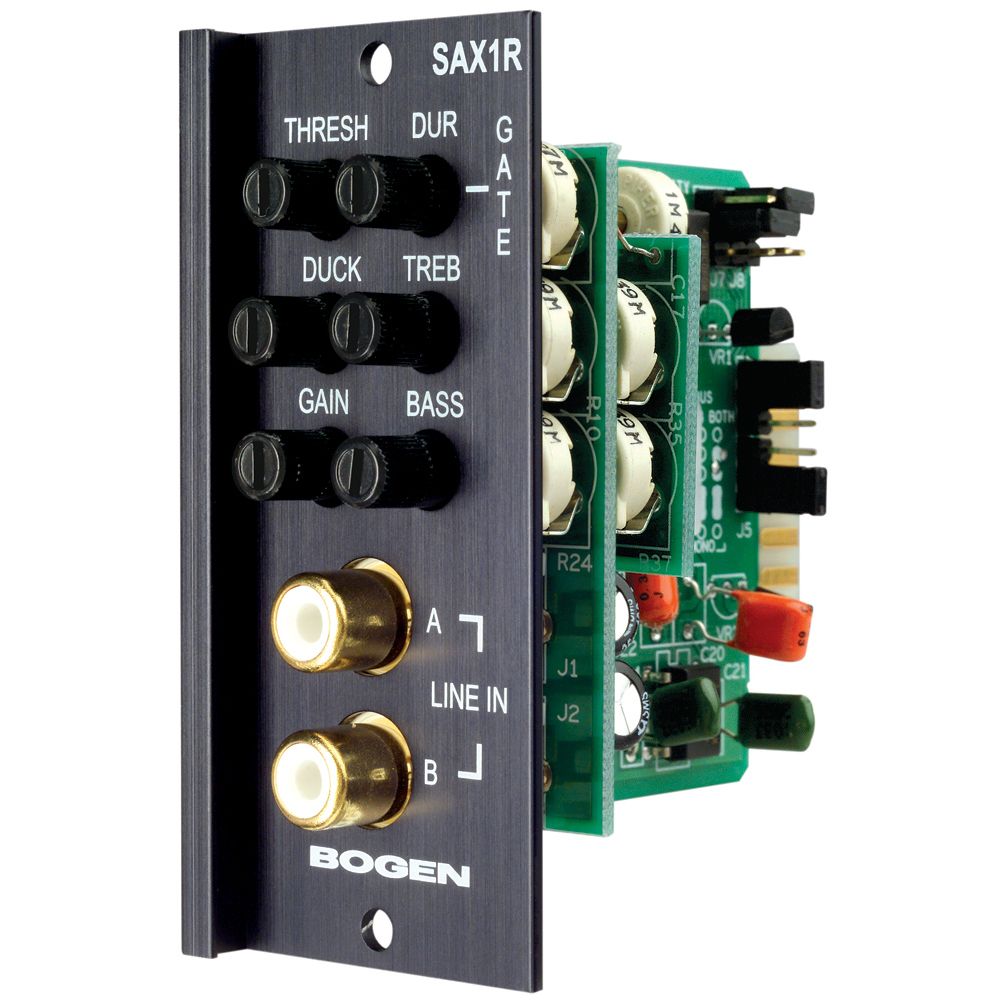

Bogen Communications Stereo AUX Advanced Input Module SAX1R

The SAX1R module is a stereo, high-impedance unbalanced input module with two RCA jacks for connection. It features gain/trim control with a range of -20 dB to +6 dB, and provides ducking, gating, and mute functions with adjustable priority levels. Additionally, it includes bass and treble controls, as well as the ability to assign output signals to two mixing buses, allowing for flexible audio routing and mixing of stereo sources into mono outputs.

• Gain/Trim control
• Bass & Treble controls
• Gating w/Threshold & Duration
• Mute send & receive
• Variable ducking level when muted/gated
• Fade back from mute/gate
• 4 Priority levels
• Bus assignable
• Stereo to mono summing option (SAX1R module)
• RCA connectors
