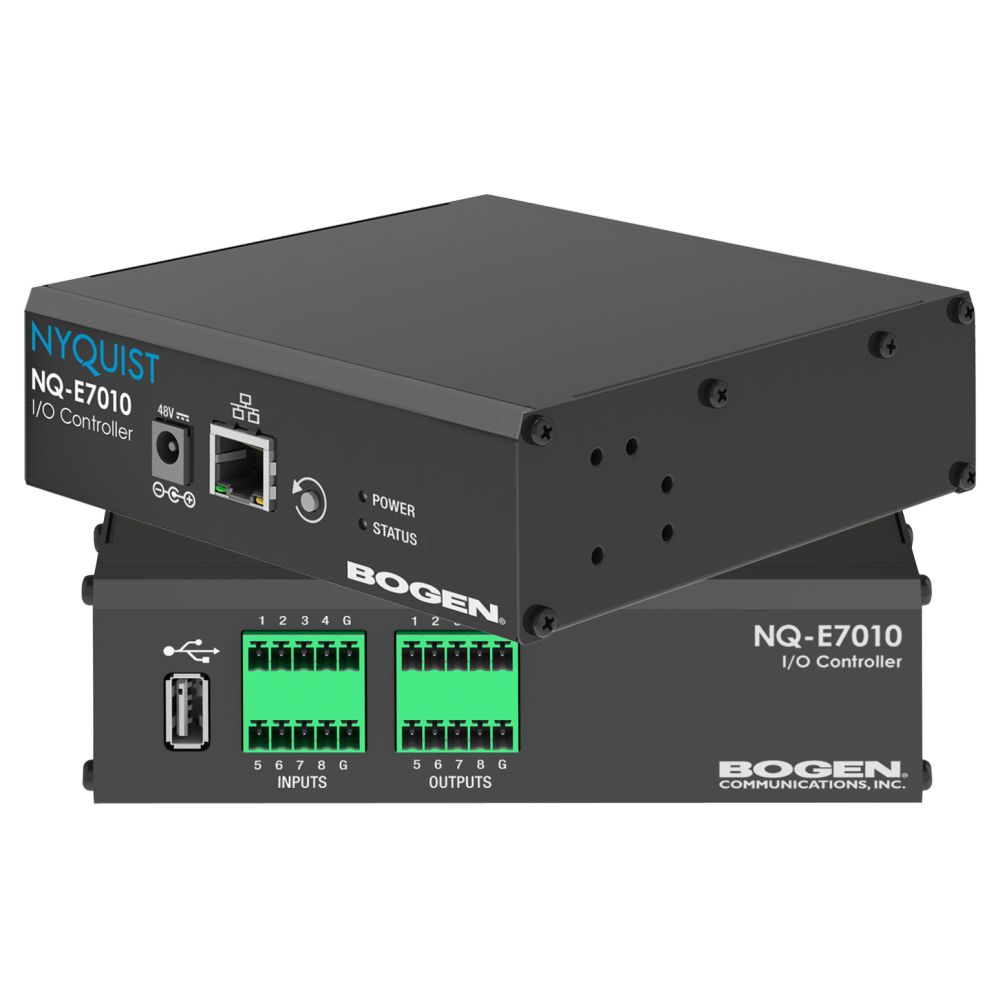

Bogen Communications Nyquist Input/Output Controller NQ-E7010

The Nyquist I/O Controller appliance offers eight dry contact closure inputs to monitor events and triggers from third-party systems and devices, such as fire alarms, lockdown buttons, and sensors. It also includes eight open-collector relay driver outputs for initiating actions like clock correction (e.g., generating sync pulses) on external systems. These outputs can be configured through Nyquist system software to respond to contact closures from the same or other I/O Controllers within the same Nyquist system.

Bogen Communications Nyquist Input/Output Controller NQ-E7010 Features & Specifications:

• 10/100 Ethernet
• PoE Class-3 (IEEE 802.3af compliant) - Optional 48VDC 15W power supply
• 8 x dry contact closure inputs (with 1 ground per 4 inputs)
• 8 x relay driver outputs (500mA max per ground sink)
• USB 2.0 host port, Type A connector (future use)
• May be wall or shelf mounted: 5.6” W x 5.4” D x 1.7” H (2” with feet)
• Five year limited warranty
