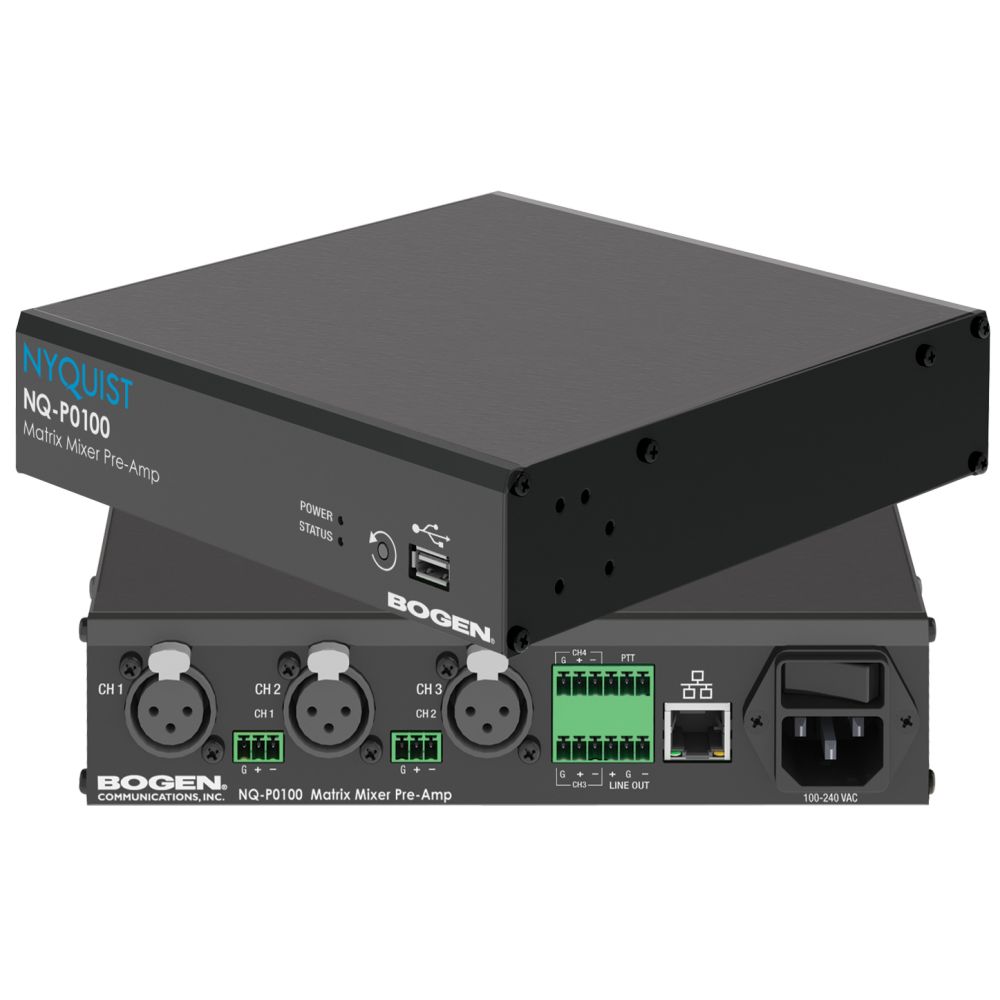

Bogen Communications Nyquist 4-Channel Matrix Mixer Pre-Amplifier NQ-P0100

Bogen’s Nyquist 4-Channel Matrix Mixer Pre-Amplifier (MMPA) provides cost-effective, high-performance sound solutions tailored for permanent commercial installations. Designed with commercial sound contractors in mind, the MMPA delivers unmatched flexibility and versatility without the need for additional modules. It features advanced DSP for comprehensive signal processing, enabling seamless management and mixing of multiple audio input channels. The mixed audio output can be sent to the MMPA’s line out or streamed over the Nyquist network for distribution to one or more zones. Ideal for multi-zone paging and background music, the MMPA supports diverse commercial applications in businesses, restaurants, retail stores, industrial facilities, and more.

Bogen Communications Nyquist 4-Channel Matrix Mixer Pre-Amplifier NQ-P0100 Features & Specifications:

• 4- MIC/Line Inputs
• CH1-CH4 configurable balanced/unbalanced inputs via 3 XLR and 4 screw-terminal connections
• Channel four (4) can be configured to support Push-to-Talk microphone applications
• Mic inputs can be configured to supply Phantom Power when needed
• CH1 can alternately be configured as an AES3 digital input
• Web-based DSP control
• 16-band Graphic Equalizer
• Signal present and clip monitor
• Adjustable High Pass, Low Pass, and Bandpass filters
• Noise Gate
• Compressor/Limiter
• 7-band parametric equalizer
• Mixed signals can be routed to Line Out or over the Nyquist network
• Nyquist network-based audio input (paging, audio distribution)
• Line-Level Monitor Output to drive input to “legacy” amplifiers
• Safety: CAN/CSA C22.2 No. 62368-1:2014; UL62368-1:2014; EN62368-1:2014 • EMC: FCCPart15b ClassA; ICES-003, Issue 6:2016; EN 55032:2012; EN55035:2017
• Wall, Rack, or Shelf mountable – 1 RU package
• 19” Rack Mount Kit (NQ-RMK03; sold separately)
