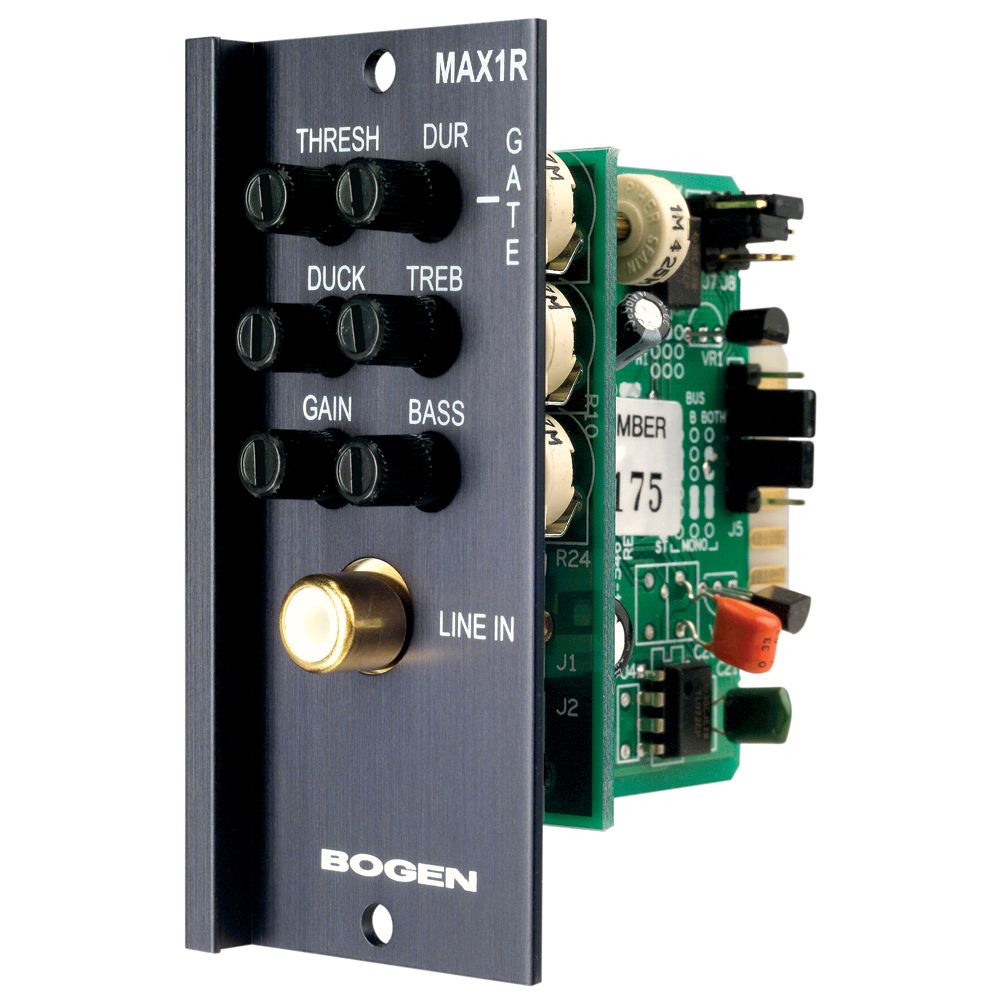

Bogen Communications Mono Aux Advanced Input Module MAX1R

The MAX1R module is a mono, high-impedance, unbalanced input with an RCA jack. It features gain/trim control adjustable from -20 dB to +6 dB and supports muting lower priority modules while being muted by higher priority ones. The module includes a continuously variable ducking control, a VOX/gating circuit for muting, and internal threshold and duration controls. It also offers bass and treble adjustments with ±10 dB at 100 Hz and 10 kHz, and the output is assignable to either or both of two mixing buses.

Bogen Communications Mono Aux Advanced Input Module MAX1R Features & Specifications:

• Gain/Trim control
• Bass & Treble controls
• Gating w/Threshold & Duration
• Mute send & receive
• Variable ducking level when muted/gate
• Fade back from mute/gate
• 4 Priority levels
• Bus assignable
• Stereo to Mono summing option (SAX1R module)
• RCA connectors
