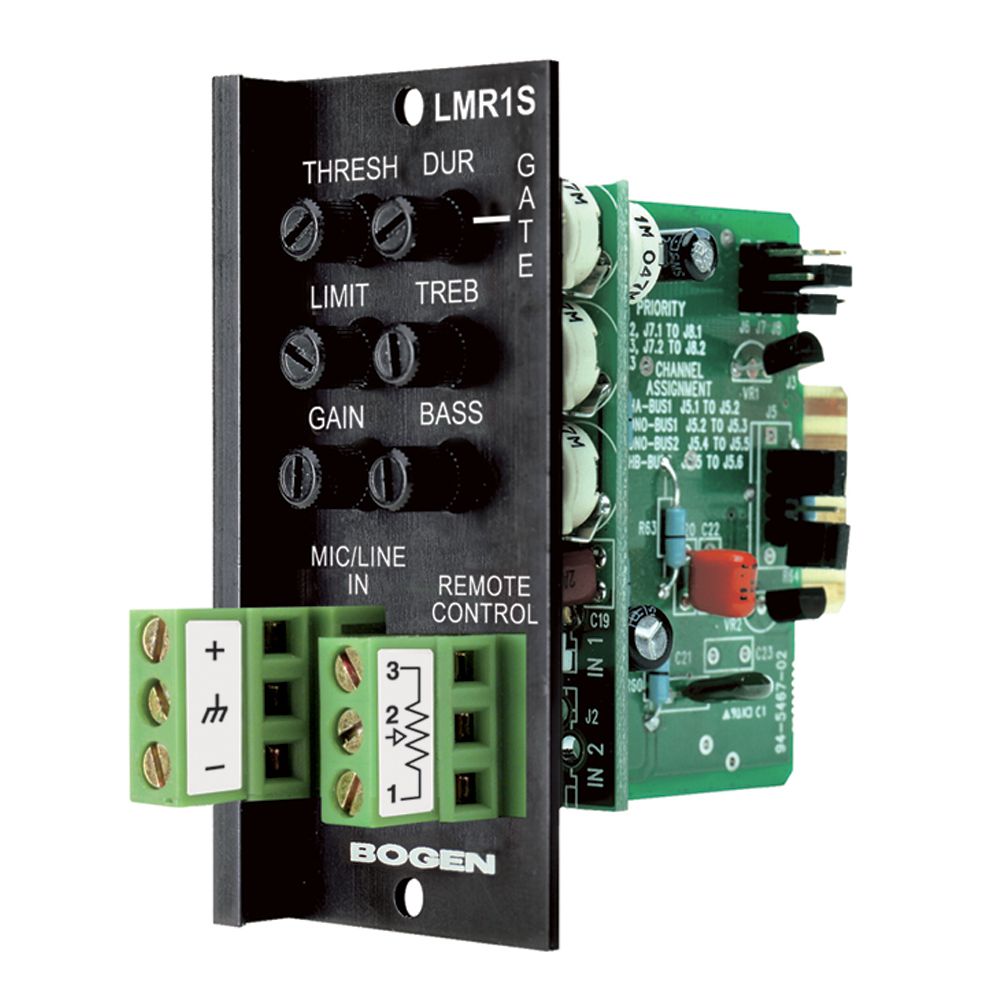

Bogen Communications Line/MIC Advanced Input Module w/ Screw Terminal Connections and Remote Volume Control LMR1S

The LMR1S module is a versatile input module with remote volume control via potentiometer or voltage input (0–4.5V DC). It includes a 24V DC phantom power supply, adjustable gain (18dB–60dB for MIC, -2dB–40dB for LINE), and features priority muting and internal gating with threshold and duration controls. Additionally, the module offers bass and treble adjustments, limiter functionality with LED indication, and the ability to assign output to two mixing buses, making it suitable for professional audio systems.

Bogen Communications Line/MIC Advanced Input Module w/ Screw Terminal Connections and Remote Volume Control LMR1S Features & Specifications:

• Gain control
• Bass & Treble controls
• Actively-balanced input
• LINE/MIC Attenuator switch
• Gating w/Threshold & Duration
• 24V Phantom power supply
• 4 Priority levels
• Bus assignable
• Built-in limiter w/ LED
• Remote control volume option
• Single-gang remote control panel included
• Remote distance up to 2,000 Ft.
• Screw terminal connectors
