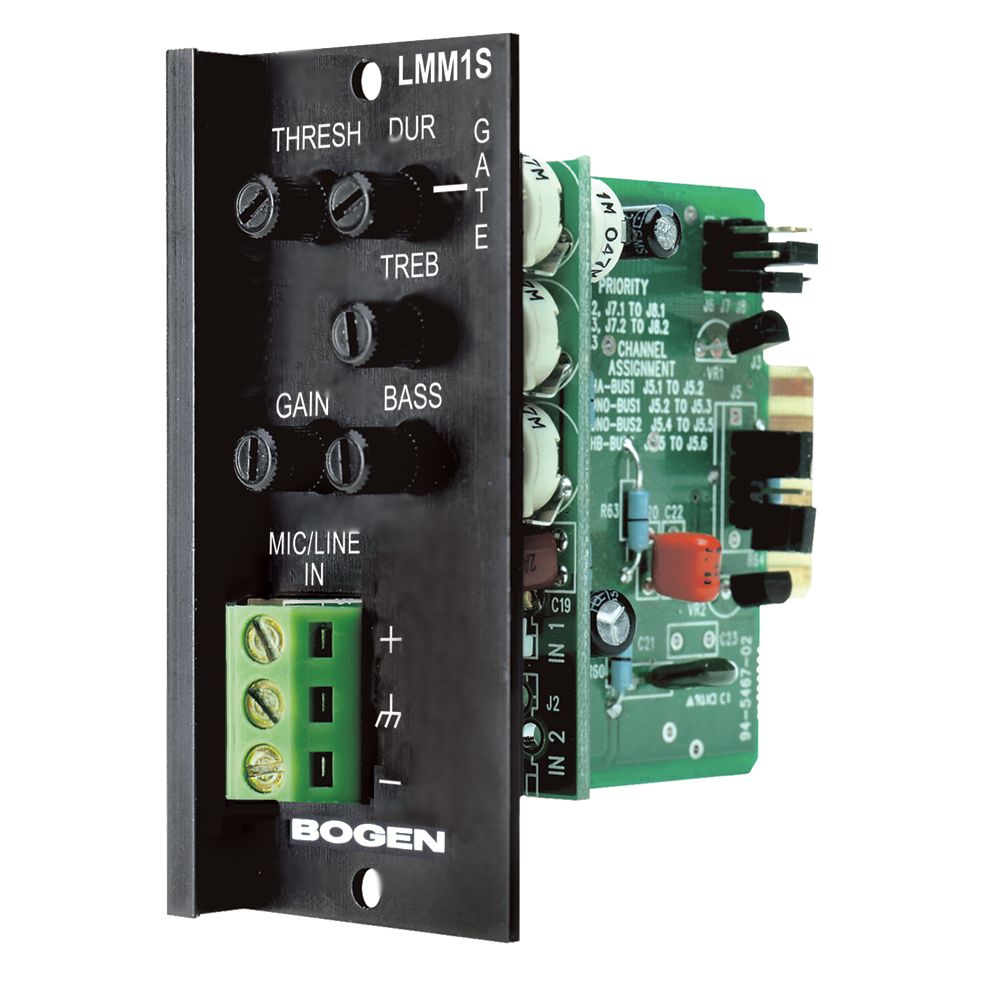

Bogen Communications Line/MIC Advanced Input Module w/ Screw Terminal Connections LMM1S

The LMM1S module features a Line/MIC level input accessible via front screw terminals, with an internal 24V DC phantom power option enabled by a PCB jumper. It includes gain control adjustable from 18dB to 60dB for MIC input and -2dB to 40dB for LINE input. It supports muting functions based on four priority levels and offers an internal gating circuit for threshold and duration control. Bass and treble adjustments provide a 10dB cut or boost at 100 Hz and 10 kHz, and outputs can be routed to one or both mixing buses.

Bogen Communications Line/MIC Advanced Input Module w/ Screw Terminal Connections LMM1S Features & Specifications:

• Gain Control
• Bass & Treble controls
• Actively-balanced Input
• LINE/MIC Attenuator switch
• Gating w/Threshold & Duration
• 24V Phantom power supply
• 4 Priority levels
• Bus assignable
• Screw terminal connectors
