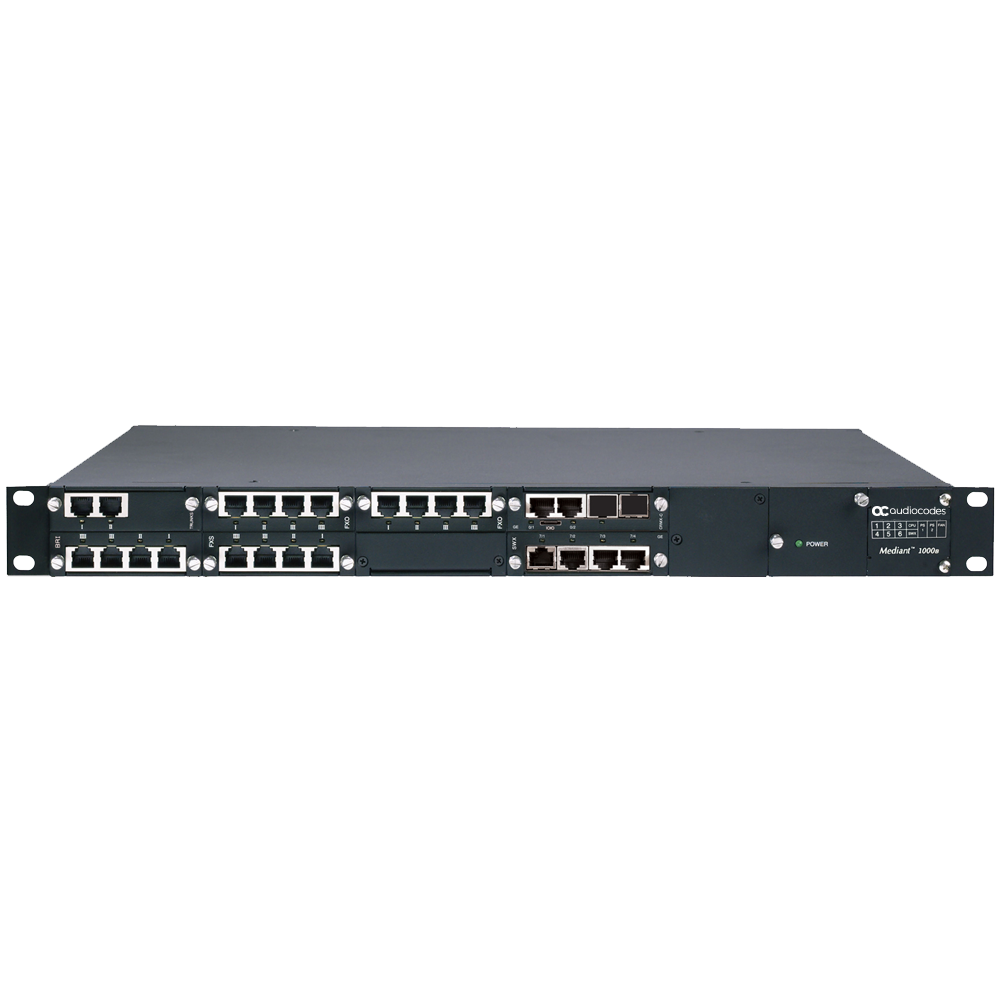

Audiocodes Mediant 1000B Chassis with 3 GE Ports and Single AC Power Supply TAA M1KB-2AC-TAA

The AudioCodes Mediant 1000B chassis features three Gigabit Ethernet (GE) ports, providing high-speed network connectivity for robust communication. It is equipped with a single AC power supply, ensuring reliable operation and power efficiency. This TAA-compliant model is designed to support various VoIP applications and integrates seamlessly into enterprise environments.

Audiocodes Mediant 1000B Chassis with 3 GE Ports and Single AC Power Supply TAA M1KB-2AC-TAA Features & Specifications:

• - Interfaces:
• -- 6 modular bays for voice modules
• -- one active/standby pair of 10/100/1000 Ethernet interfaces
• -- Dual AC Power Supplies
• TAA Compliant
• -Media Processing:
• -- Voice Coders: G.711, G.726, G.727, G.723.1, G.729, GSM FR, MS GSM, iLBC, EG.711, EVRC, QCELP, AMR, GSM EFR, G.722, Independent dynamic vocoder selection per channel.
• -- Echo Cancellation: G.165 and G.168-2002, with 32, 64 or 128 tail length.
• -- Quality Enhancement: Dynamic programmable jitter buffer, VAD, CNG, 802.1p/Q VLAN tagging, DiffServ, voice quality monitoring, G.729B, RTCPXR.
• -- DTMF/MF Transport: Packet side or PSTN side detection and generation, RFC 2833 compliant DTMF relay. Call Progress tones detection and generation.
• -- IP Transport: VoIP (RTP/RTCP) per IETF RFC 3550 and 3551.
• -- Fax and Modem Transport: T.38 compliant (real time fax), Automatic bypass to PCM or ADPCM.
• -Signaling:
• -- Digital –PSTN Protocols: CAS: MF-R1: T1 CAS (E&M, Loop, Start, Feature Group-D, E911CAMA), E1 CAS (R2 MFC), R1.5 numerous protocol and country variants
• -- ISDN PRI: ETSI/EURO ISDN, ANSI NI2 and other variants (DMS100, 5ESS) QSIG (Basic and supplementary), IUA (SIGTRAN), VN3, VN4, VN6
• -- Analog Signaling: FXS; Caller ID; polarity reversal; metering tones, distinctive ringing, visual message waiting indication, Loop Start, Ground Start
• -Security: IPSEC, HTTPS, TLS (SIPS), SSL, Web access list, RADIUS login and SRTP2
• - Power Supply: 100-240V, 50-60Hz, 1.5A Max, redundant power supply configuration
• - Form Factor: 1U high, 19-inch wide

Adding Voice Modules:

• - Using all Digital Modules the M1KB will support:
• - Control protocols: SIP and H.248
• - Modularity:
• -- Up to 4 modules of 1 E1/T1
• -- Up to 2 modules of 2 E1/T1
• -- Up to 1 module of 4 E1/T1
• -- Up to 5 Modules of 4 BRI (40 sessions)- SIP only
• - Lifeline

• - Using all Analog Modules the M1KB will support:
• - Control Protocols: SIP MGCP
• - Modularity: 1-6 modules 4 ports (Up to 24 ports)
• - Module types: FXS and FXO Ground start or Loop start

• -Mixed interfaces of Analog Digital and BRI CPE MGW on one platform the M1KB will support:
• - Control protocols: SIP
• - Modularity: Up to 4 Trunks with analog lines and BRI (with or without MPM)
• - Flexible mix of digital analog and BRI ports
