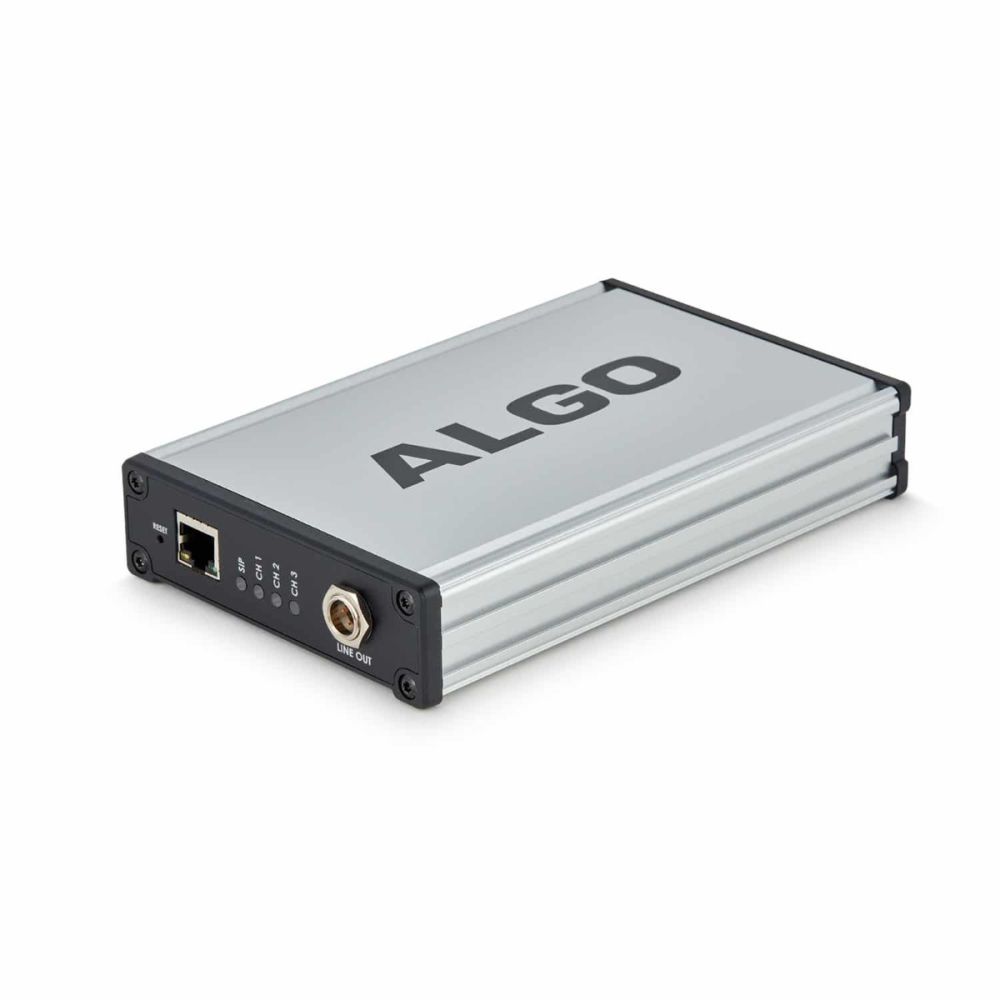

Algo 8373 Zone Paging Adapter

The 8373 eliminates the need for a legacy zone controller. The 8373 supports RTP multicast and Polycom Group Page. For scalability, multiple 8373 adapters can be used to support as many page zones as required from a single amplifier. It is also certified for native compatibility with Microsoft Teams via the Microsoft Teams SIP Gateway! The Algo 8373 is a PoE IP Zone Paging Adapter for integrating legacy voice paging systems into a hosted/cloud or premise VoIP telephone system as a 3rd party SIP endpoint. The 8373 eliminates the need for a legacy zone controller, however, it can also be deployed to add page zones to an existing single zone system as well.

The high voltage audio output of the amplifier is wired back to the 8373 and connected up to three separate speaker zones using high current internal zone control relays. The zone control relays are activated appropriately before paging based on the SIP extension called, multicast IP address received, or keypad input. For scalability, multiple 8373 Paging Adapters can be used to support as many page zones as required from a single amplifier.

Algo 8373 Zone Paging Adapter Features & Specifications:

• Made in Canada
• Wideband G.722 codec support for HD Voice
• Isolated and balanced audio output
• Automatic level control
• Internal zone control relays (3)
• Multicast receive or broadcast capability
• SIP compatibility with all leading UC vendors including Avaya, Broadsoft, Cisco, Digium/Asterisk, Mitel, Metaswitch, NEC, and Polycom to name a few
• Configurable through web interface
• Auto-provisioning (i.e., TFTP, FTP, HTTP)
• SNMP supervision
• Multiple SIP registration for Page (50) extensions
• UL/CSA, FCC, CE
