The A8 Series Digium 1A8B02F 8 Port 0-FXS/8-FXO PCI-e Card
Add to Compare

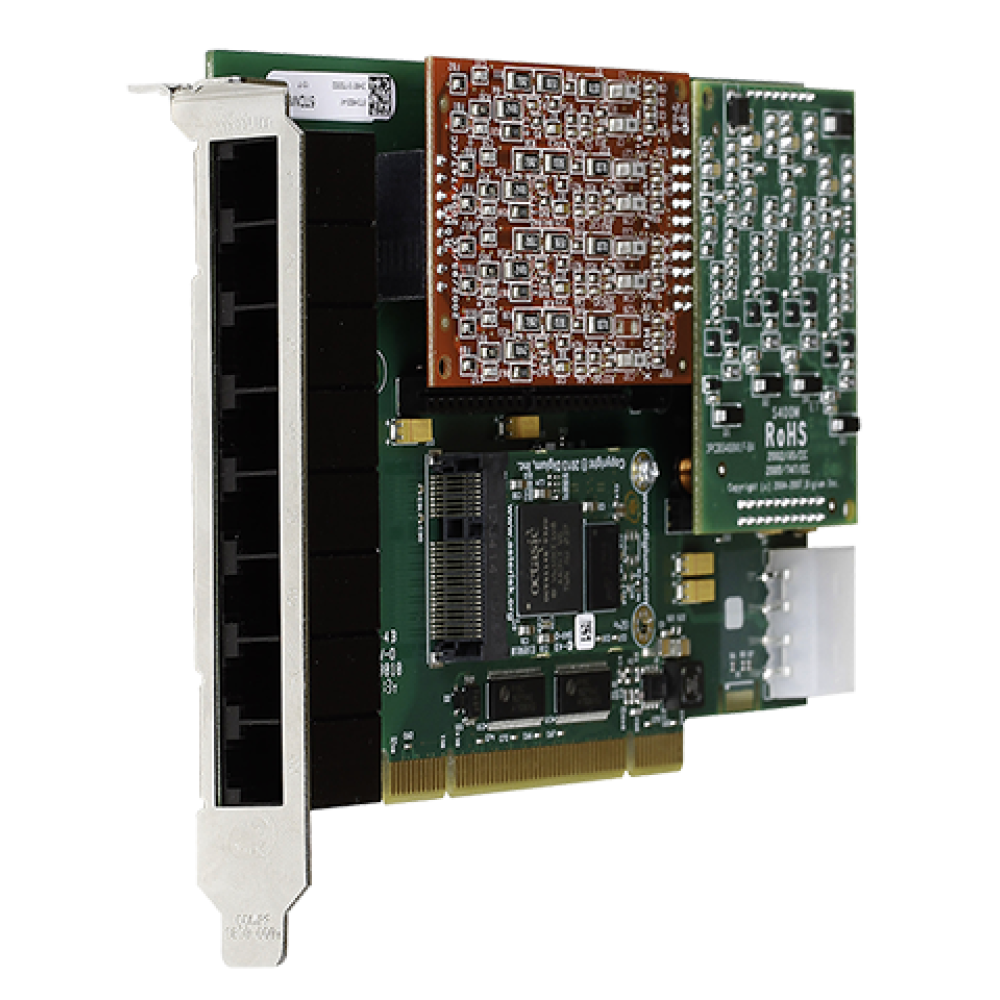

Digium 1A8B02F 8 Port 0-FXS/8-FXO PCI-e Card

The 1A8B02F from the A8 Series is a PCI-Express card for with 8 ports.

Digium 1A8B02F 8 Port 0-FXS/8-FXO PCI-e Card Overview

Connect your PTSN to an Asterisk connection with the only telephony board cards certified to work with Asterisk. Digium Cards offer the best choice for Asterisk implementations to your telephony network with their high performance, cost effective and quality telephony cards.

Digium offers a line of quality analog and digital interface cards for connectivity for your IP PBX, IVR, VoIP Gateway, or telephone network.

Digium 1A8B02F 8 Port 0-FXS/8-FXO PCI-e Card Features:

  • One (1) - eight (8) analog ports
  • PCI or PCI Express bus architectures
  • Combine line (FXO) and station (FXS) modules
  • Accepts up to two (2) quad-port modules or up to 4 single-port modules
  • Optional DSP -based carrier grade echo cancellation module
  • 32-bit 33MHz
  • Loop Start or Kewl Start Signaling
  • Temperature: 0° to 50° C
  • Digium patented VoiceBus™ technology for better audio
  • 5-year warranty
  • With Asterisk - DAHDI 2.7 or later required
  • With Switchvox - Switchvox 5.8.1 or later required
  • Risk-free 30-day 100% satisfaction money back guarantee with ESP guarantee

Digium Features:

  • Proven liability from an ISO 9001 Certified company
  • Specfically built and optimized for Asterisk-based processing of voice
  • Digium telephony cards are developed by the creators of Asterisk
  • Heavily tested in all the major server hardware platforms such as Dell, HP, and IBM
  • Work in a variety of hardware platforms with chip sets including AMD, Intel, VIA, Nvidia and more
  • Tested with multiple Linux-based operating systems
  • Digium developed the analog signaling and digital line signaling library

    • Didn't find the PCI Cards you were looking for? Call us!

    More Information
    SKU 02-116642
    Shop By Brand Digium
    UPC 797734602449
    Model 1A8B02F
    MPN 1A8B02F
    MSRP $1,100.00
    Manufacturer Warranty 5 Year
    # of FXS Ports 0
    # of FXO Ports 8
    Connection Types RJ-11
    Bus Type PCI-Express
    Voltage Requirements 1x Express
    Echo Cancellation No
